xTool F1 Portable Dual Laser Engraver 10W Diode Laser + 2W Infrared Laser with Slide Extension High-Speed Metal and Wood Laser Engraving Machine

Product Description
The xTool F1 Portable Dual Laser Engraver with Slide Extension is a compact high-speed laser engraving machine designed for makers, small businesses, jewelry workshops, and personalization services. Equipped with a 10W diode laser and a 2W 1064 nm infrared laser, this portable dual laser engraver can process a wide range of materials including wood, leather, coated metals, stainless steel, and precious metals. The diode laser handles cutting and engraving of organic materials, while the infrared laser enables precise metal marking and engraving.

With a maximum engraving speed of up to 4000 mm/s and high motion accuracy of 0.00199 mm, the system delivers fast and detailed results for small products and customized items. The included slide extension expands the engraving workspace from 115 × 115 mm to 400 × 115 mm, enabling longer items and batch production. Its portable design and pre-assembled setup make it ideal for workshops, retail customization, craft fairs, and engineering labs in Bangladesh.

Key Features

• Dual Laser Engraving System – Combines a 10W diode laser and 2W infrared laser for engraving wood, leather, plastics, and metals

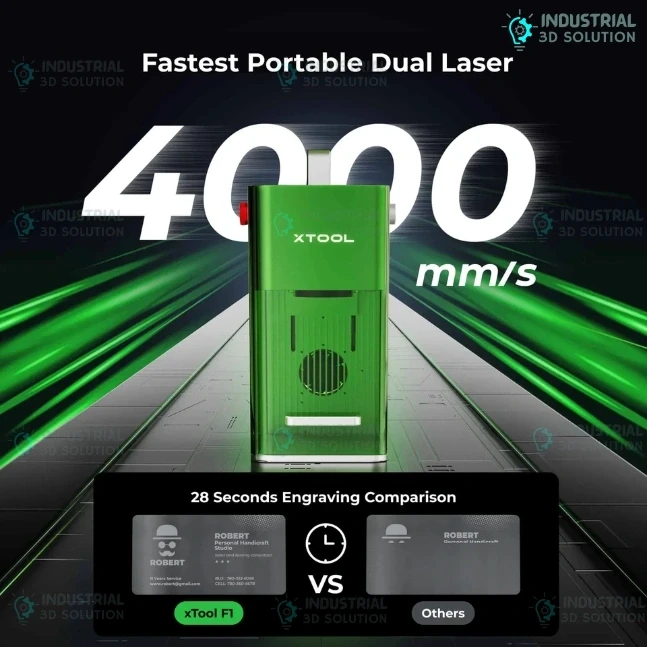

• High-Speed Laser Engraving – Maximum engraving speed up to 4000 mm/s for efficient customization and production workflows

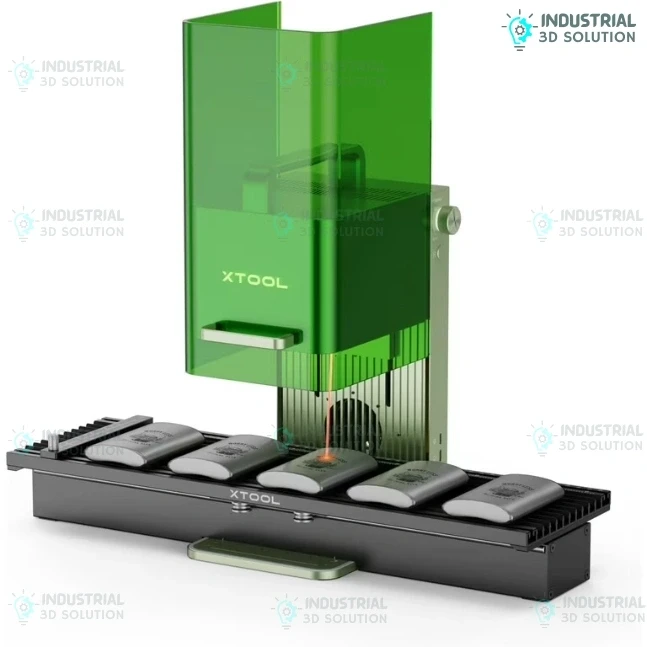

• Slide Extension Working Area – Expands workspace up to 400 × 115 mm for larger engraving projects
• Infrared Laser Metal Engraving – Supports stainless steel, gold, silver, brass, titanium, and aluminum marking
• Portable Laser Engraver – Compact 4.6 kg design suitable for craft fairs, retail stores, and on-site personalization
• High Precision Laser Spot – Diode laser 0.08 × 0.06 mm and IR laser 0.03 × 0.03 mm for detailed engraving
• Live Position Preview – Real-time framing preview ensures accurate alignment of designs
• User-Friendly Operation – Fully pre-assembled machine with easy workflow using xTool Creative Space software
• Multi-Software Compatibility – Works with xTool Creative Space and LightBurn laser engraving software

Technical Specifications

Material / Model / Type
Model: xTool F1
Type: Portable Dual Laser Engraver

Laser Configuration
10W 455 nm Diode Laser
2W 1064 nm Infrared Laser

Processing Modes
Laser Engraving
Laser Cutting

Working Area
Standard: 115 × 115 mm
With Slide Extension: 400 × 115 mm

Maximum Engraving Speed
4000 mm/s

Laser Spot Size
Diode Laser: 0.08 × 0.06 mm
Infrared Laser: 0.03 × 0.03 mm

Motion Accuracy
0.00199 mm

Maximum Processing Height
113 mm

Maximum Rotary Engraving Diameter
113 mm

Compatibility
xTool Creative Space
LightBurn Software

Operating Requirements
Power Input: 24V 5A
Adapter Voltage: 100–240V AC, 50/60 Hz

Net Weight
4.6 kg

Package Weight
Approx. 7 kg

Package Dimensions (Length × Width × Height in cm)
45 × 35 × 32 cm

Color / Finish
Matte Black

Country of Origin
China

Applications / Use Cases

• Jewelry engraving and precious metal marking
• Stainless steel tag engraving and industrial labeling
• Wood engraving for crafts, gifts, and decorative products
• Leather engraving for wallets, belts, and accessories
• Acrylic and plastic product labeling
• Custom gift personalization and souvenir engraving
• Small-batch product branding and serial number marking
• Workshop production and maker space fabrication
• Craft fair and in-store engraving services
• Engineering labs and prototyping workshops in Bangladesh

Packaging Information

The laser engraver is securely packed to protect optical components and electronic parts during shipping and handling.

Inside the box

• xTool F1 Portable Dual Laser Engraver
• Slide Extension Module
• Power Adapter and Power Cable
• USB Connection Cable
• Safety Protection Components
• Installation Tools
• User Manual and Quick Start Guide

The product is packed using protective foam inserts and reinforced outer packaging to ensure safe transportation.

Why Choose This Product

• Dual laser technology supports engraving on both metal and organic materials
• High-speed engraving improves productivity for customization businesses
• Portable and compact design suitable for retail stores and mobile engraving
• Slide extension increases working area for larger projects
• Compatible with professional laser engraving software tools
• Suitable for makers, engineers, and engraving businesses in Bangladesh
