AlgoLaser ALM-2IE 2W 1064nm Infrared Laser Module Metal Engraving Head for AlgoLaser Alpha MK2 and Compatible Laser Engravers

AlgoLaser ALM-2IE 2W 1064nm Infrared Laser Module Metal Engraving Head for AlgoLaser Alpha MK2 and Compatible Laser Engravers

Product Description
The AlgoLaser ALM-2IE is a high-precision 2W 1064 nm infrared laser module designed specifically for metal engraving and detailed industrial marking. Unlike standard blue diode laser modules, the 1064 nm infrared wavelength is optimized for engraving metals such as gold, silver, copper, aluminum, and stainless steel while also performing well on certain plastics. This makes the ALM-2IE an ideal upgrade module for users who need accurate metal marking with minimal heat distortion.

Featuring a compressed laser spot of approximately 0.04 × 0.05 mm and a fast 20,000 Hz repetition rate, the module delivers extremely fine engraving results suitable for jewelry engraving, serial number marking, and industrial product identification. The 3 ns pulse width reduces the heat-affected zone, allowing precise and clean engraving even on delicate surfaces. Compatible with AlgoLaser machines such as the Alpha MK2 and many DIY laser engravers, the ALM-2IE is well suited for workshops, makerspaces, and engraving businesses in Bangladesh.

Key Features

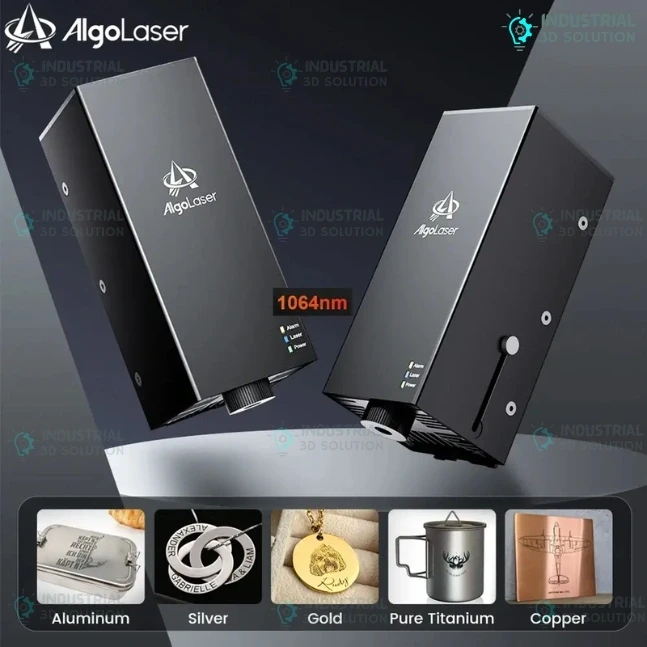

• 1064 nm Infrared Laser Module – Optimized for engraving metals including stainless steel, aluminum, gold, silver, and copper
• High Precision Laser Spot – Compressed spot size of approximately 0.04 × 0.05 mm enables fine detail engraving and micro-marking
• Fast Laser Pulse System – 3 ns pulse width and 20,000 Hz repetition rate deliver sharp and accurate marking results
• 2W Infrared Laser Power – Efficient metal engraving with minimal heat-affected zones
• Metal Engraving Capability – Suitable for jewelry engraving, industrial marking, and product identification

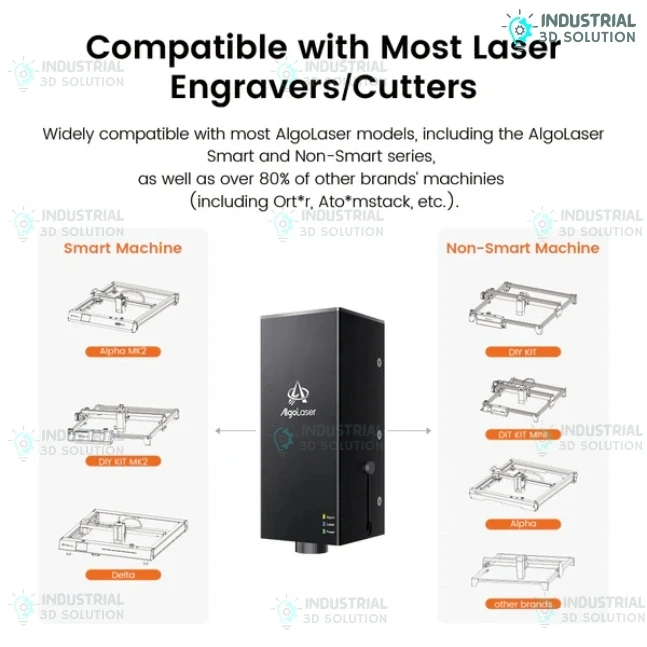

• Wide Machine Compatibility – Designed for AlgoLaser Alpha MK2 and compatible DIY laser engravers such as Ortur systems
• Low Material Deformation – Infrared laser technology reduces burning and improves engraving clarity on metals

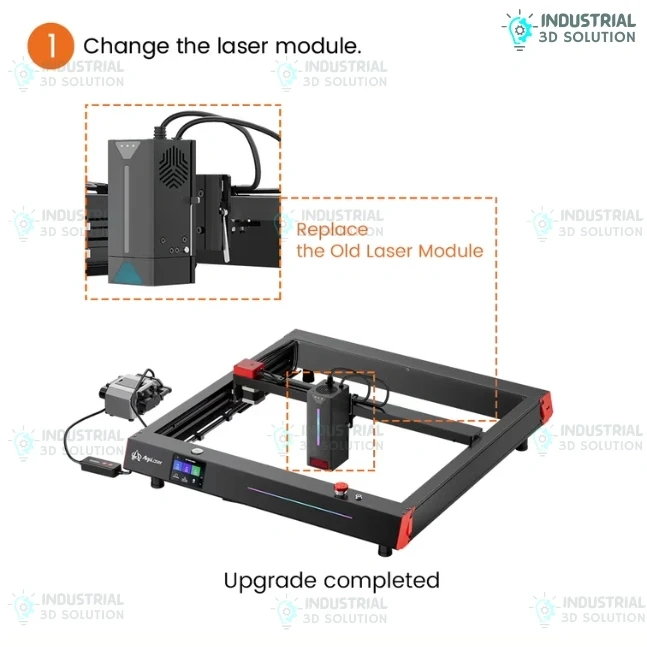

• Upgrade Module for Laser Engravers – Easy installation for users upgrading from standard diode laser modules

Technical Specifications

Material / Model / Type
Model: AlgoLaser ALM-2IE (AG-2W-XY)
Type: 1064 nm Infrared Laser Engraving Module

Laser Type
Infrared Laser

Wavelength
1064 nm

Optical Output Power
2 W

Laser Spot Size
0.04 × 0.05 mm (compressed circular spot)

Pulse Width
3 ns

Repetition Rate
20,000 Hz

Compatibility
AlgoLaser Alpha MK2
Compatible DIY Laser Engravers (Ortur and similar platforms)

Operating Requirements
Compatible laser controller system
Requires 1064 nm protective safety goggles

Net Weight
Approx. 0.35 kg

Package Weight
Approx. 0.6 kg

Package Dimensions (Length × Width × Height in cm)
20 × 15 × 10 cm

Color / Finish
Black Industrial Finish

Country of Origin
China

Applications / Use Cases

• Jewelry engraving on gold, silver, and stainless steel rings and bracelets
• Industrial marking of serial numbers, barcodes, and QR codes on metal parts
• Product branding and logo engraving on metal surfaces
• Engraving on aluminum and stainless steel components
• Marking hard plastics used in electronics and engineering products
• Custom engraving for promotional items and accessories
• Workshop fabrication and small-batch manufacturing
• Maker space metal engraving and prototyping

Packaging Information

The module is securely packaged with protective foam to prevent damage during transportation.

Inside the box

• AlgoLaser ALM-2IE 2W Infrared Laser Module
• Mounting Hardware
• Connection Cable
• Installation Guide

Packaging is reinforced and shock-protected to ensure safe delivery.

Why Choose This Product

• Infrared laser technology optimized specifically for metal engraving
• Ultra-fine laser spot for high-precision marking applications
• Compatible upgrade module for AlgoLaser and DIY laser engravers
• Fast pulse system enables clean engraving with minimal heat distortion
• Suitable for jewelry engraving, industrial marking, and customization businesses
• Reliable performance for workshops and engraving professionals in Bangladesh
