Plate & Tube Integrated Fiber Laser Cutting Machine CNC Metal Cutter 3000×1500mm 1000W–12000W Multi-Function System

Plate & Tube Integrated Fiber Laser Cutting Machine CNC Metal Cutter 3000×1500mm 1000W–12000W Multi-Function System

Product Description

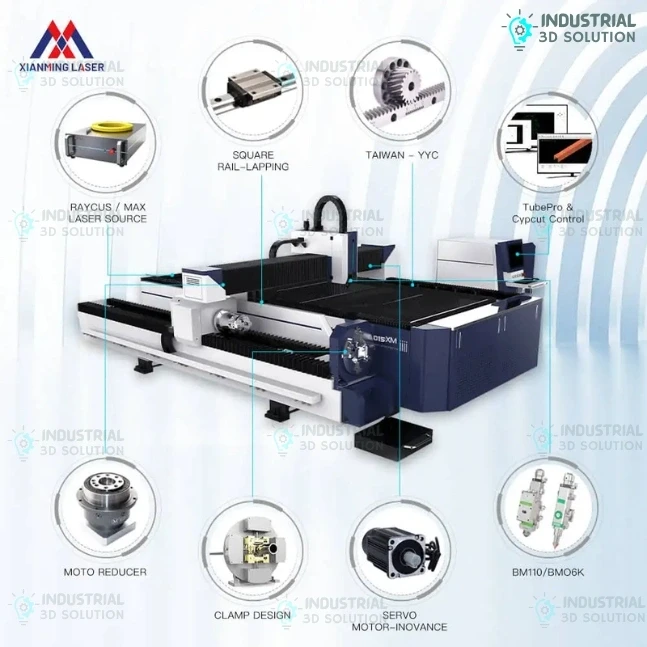

The plate and tube integrated fiber laser cutting machine is a versatile CNC solution designed for efficient metal sheet and pipe cutting in a single system. Built for fabrication workshops, engineering industries, and manufacturing businesses in Bangladesh, this machine combines dual functionality to reduce equipment investment and save workspace.

With a 3000×1500mm working area and support for both sheet and tube processing, it delivers high-speed, high-precision cutting across a wide range of metals including stainless steel, carbon steel, aluminum, and brass. Equipped with advanced CNC control systems (TubePro & Cypcut) and high-performance laser sources, it ensures smooth edges, minimal deformation, and consistent output quality. This machine is ideal for businesses seeking cost-effective, multi-purpose laser cutting solutions with reliable performance and scalability.

Key Features

• Dual-function fiber laser cutting machine for both sheet metal and tube cutting applications
• 3015 CNC laser cutter with integrated design reduces equipment cost and floor space
• High precision metal cutting machine with stable servo motor system and guide rails
• Wide laser power range (1000W–12000W) supports diverse industrial cutting requirements
• Advanced TubePro & Cypcut CNC system for efficient programming and operation
• High-speed laser cutting system with up to 120m/min running speed
• Compatible with multiple laser sources (Raycus, MAX, IPG) for flexible performance
• Auto-optimized cutting head ensures smooth edges and minimal material deformation
• Supports multiple graphic formats including DXF, DWG, AI for design flexibility
• Durable industrial structure ensures long-term reliability and consistent output

Technical Specifications

Model
XM-3015FT

Machine Type
Plate & Tube Integrated Fiber Laser Cutting Machine

Working Area
3000 × 1500 mm

Working Table
Sheet & Tube Combined Platform

Laser Power Options
1000W / 1500W / 2000W / 3000W / 6000W / 8000W / 12000W

Maximum Acceleration
1G

Max Running Speed
120 m/min

Cutting Head Options
Raytools / Precitec / WSX / OSPRI

Control System
TubePro & Cypcut CNC System

Laser Source Options
Raycus / MAX / IPG

Supported File Formats
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

Voltage Requirement
380V Three-Phase

Material Compatibility
Carbon Steel, Stainless Steel, Aluminum, Brass, Copper, Titanium, Galvanized Steel

Net Weight
Approx. 6500 – 9500 kg

Package Weight
Approx. 7500 – 10500 kg

Package Dimensions (L × W × H)
Approx. 450 × 230 × 210 cm

Color / Finish
Industrial White with Protective Coating

Country of Origin
China

Applications / Use Cases

• Metal sheet and pipe fabrication workshops
• Engineering and manufacturing industries in Bangladesh
• Steel structure and construction projects
• Signage and advertising metal cutting
• Automotive parts and chassis production
• Electrical panel and enclosure manufacturing
• Furniture and decorative metal fabrication
• Agricultural machinery and equipment production
• CNC job work and custom fabrication businesses

Packaging Information

• Complete machine covered with protective film
• Anti-collision edge protection for safe transport
• Fumigation-free plywood wooden box with pallet base
• Reinforced with industrial iron binding straps
• Export-grade packaging for secure long-distance delivery

Why Choose This Product

• Integrated sheet and tube cutting reduces machine investment cost
• Space-saving design ideal for compact workshops in Bangladesh
• High-speed and high-precision performance for industrial productivity
• Compatible with global laser brands and CNC software systems
• Durable construction ensures long service life with low maintenance
• Cost-effective solution for multi-purpose metal cutting operations
