xTool F2 Portable Dual Laser Engraver 15W Diode Laser + 5W 1064nm Infrared Laser Compact Metal and Wood Engraving Machine with 50MP Camera

Product Description
The xTool F2 Portable Dual Laser Engraver is a compact professional laser engraving and cutting machine designed with dual laser technology combining a 15W diode laser and a 5W 1064 nm infrared laser. This portable laser engraver enables precise engraving on both organic and metal materials, making it suitable for workshops, customization businesses, and small production environments. The diode laser supports cutting and engraving of materials such as wood, leather, paper, and MDF, while the infrared laser allows high-quality engraving on stainless steel, gold, silver, and other metals.

Equipped with a 50MP smart camera and up to 0.1 mm positioning accuracy, the xTool F2 provides live workspace preview and accurate alignment for small items. With engraving speeds up to 6000 mm/s and a portable design, this dual laser engraver is suitable for makers, engineers, and personalization businesses in Bangladesh who require flexible on-site engraving and reliable small-batch production.

Key Features

• Dual Laser System (15W Diode + 5W Infrared) – Portable dual laser engraver capable of engraving wood, plastic, and metal materials
• High-Speed Laser Engraving up to 6000 mm/s – Fast production workflow with precise detail engraving

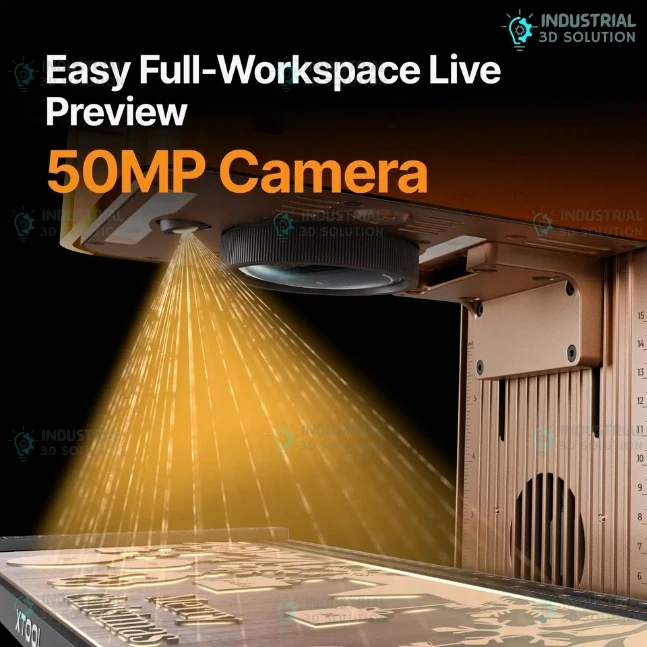

• 50MP Smart Camera Positioning – Live preview laser engraving system with up to 0.1 mm alignment accuracy
• Infrared Laser Metal Engraving – 1064 nm infrared laser supports stainless steel, gold, silver, and metal engraving
• Diode Laser Cutting Capability – Efficient cutting and engraving for wood, paper, leather, and MDF materials

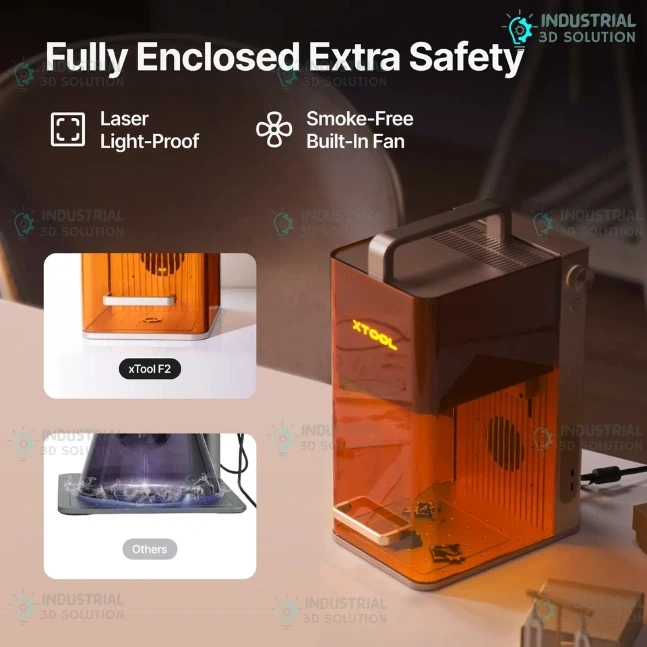

• Compact Portable Laser Engraver – Lightweight design suitable for on-site personalization and small workshop use
• High Precision Laser Spot – Diode laser spot size 0.08 × 0.06 mm and infrared laser spot size 0.03 × 0.03 mm
• User-Friendly Operation – Pre-assembled laser engraver with auto focus and live preview positioning
• Multi-Software Compatibility – Works with xTool Studio, xTool Creative Space, and LightBurn software

Technical Specifications

Model
xTool F2

Laser Type
Dual Laser Engraver

Laser Configuration
15W Diode Laser + 5W 1064 nm Infrared Laser

Processing Modes
Laser Engraving
Laser Cutting

Working Area
115 × 115 mm
400 × 115 mm with extension

Maximum Engraving Speed
6000 mm/s

Maximum Cutting Capacity (Basswood)
15 mm (multiple passes)

Maximum Cutting Capacity (Acrylic)
12 mm (multiple passes)

Maximum Processing Height
120 mm

Maximum Rotary Engraving Diameter
120 mm

Laser Spot Size
15W Diode Laser: 0.08 × 0.06 mm
5W Infrared Laser: 0.03 × 0.03 mm

Motion Accuracy
0.00199 mm

Built-in Camera
50MP Smart Camera

Supported Software
xTool Creative Space
xTool Studio
LightBurn

Supported Operating Systems
Windows
macOS

Connection Methods
WiFi
USB
IP Connection

Supported File Formats
SVG
DXF
JPG
JPEG
PNG
BMP

Machine Input Power
25V 6.0A (150W)

Power Adapter Input Voltage
100–120V AC, 50/60Hz

Safety Certification
Class 4 Laser Safety

Product Dimensions
17.5 × 23.7 × 33.4 cm

Net Weight
4.6 kg

Package Weight
Approx. 6.5 kg

Package Dimensions (Length × Width × Height)
45 × 35 × 30 cm

Color / Finish
Black / Industrial Matte Finish

Country of Origin
China

Applications / Use Cases

• Metal engraving for jewelry, stainless steel tags, and metal parts
• Wood engraving and cutting for crafts and decorative products
• Custom gift engraving and personalization services
• Leather engraving for wallets, belts, and accessories
• Acrylic and plastic engraving for signage and labels
• Prototype marking and engineering design projects
• Small-batch product branding and serial number engraving
• Maker spaces, fabrication labs, and workshop production
• Custom nameplate engraving for industrial equipment
• On-site engraving services for events and retail customization

Packaging Information

The xTool F2 Portable Dual Laser Engraver is securely packaged to protect sensitive optical components during shipping and storage.

Inside the box:

• xTool F2 Portable Dual Laser Engraver
• Power Adapter and Power Cable
• USB Connection Cable
• Protective Safety Components
• Setup and Installation Tools
• User Manual and Quick Start Guide

All components are packed with protective foam inserts and reinforced outer packaging to ensure safe delivery.

Why Choose This Product

• Dual laser technology enabling both metal engraving and material cutting
• Portable compact laser engraver suitable for workshops and on-site operations
• High precision camera positioning for accurate engraving on small objects
• Reliable performance for customization businesses and small production runs
• Compatible with popular laser software including LightBurn
• Available for professional users and makers in Bangladesh
