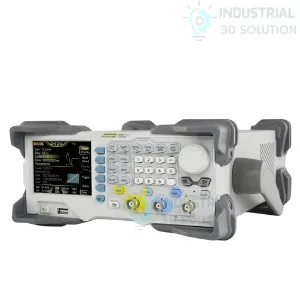

The Rigol DG1062Z is a high-precision 60MHz dual-channel arbitrary waveform generator designed to meet the demanding needs of engineers, educators, and electronics professionals. Built with advanced signal fidelity and versatile waveform generation, this device is ideal for a wide range of applications including circuit testing, design validation, and signal simulation.

Featuring a wide frequency range and support for standard and arbitrary waveforms, the DG1062Z offers reliable performance with excellent signal quality. Its intuitive interface and large display simplify test setup, while multiple modulation options and deep memory enhance flexibility for complex tasks. Ideal for bench and laboratory environments, the DG1062Z delivers professional-grade functionality at an accessible price.

Key Features

• Dual-channel signal generator with 60MHz bandwidth

• Supports sine, square, ramp, pulse, noise, and arbitrary waveforms

• Built-in 160Mpts memory depth for long waveform sequences

• 200MSa/s sampling rate for accurate signal reproduction

• Advanced modulation modes: AM, FM, PM, FSK, PWM

• High-resolution 3.5” TFT display for ease of use

• USB Host & Device, LAN, and GPIB (optional) connectivity

• Included signal editing software for PC waveform customization

Applications

• Electronics circuit development and troubleshooting

• Education and laboratory waveform demonstrations

• Embedded system testing and validation

• Signal simulation for audio and communication systems

• Industrial and manufacturing test environments

Technical Specifications

• Model: Rigol DG1062Z

• Output Channels: 2 Independent Channels

• Max Frequency: 60MHz

• Sampling Rate: 200MSa/s

• Vertical Resolution: 14 bits

• Waveform Memory Depth: 160Mpts

• Waveform Types: Sine, Square, Ramp, Pulse, Noise, Arbitrary

• Modulation: AM, FM, PM, FSK, PWM

• Interfaces: USB Host, USB Device, LAN, optional GPIB

• Display: 3.5-inch TFT LCD

• Power Supply: AC 100–240V, 45–440Hz

• Dimensions: 260mm x 107mm x 295mm

• Weight: Approx. 3.2kg
