Precision Enclosed Fiber Laser Cutting Machine Compact CNC Metal Cutter 600x600mm High Accuracy Sheet Metal Laser Cutting System Exchange Platform Small Parts Laser Cutter

Precision Enclosed Fiber Laser Cutting Machine Compact CNC Metal Cutter 600x600mm High Accuracy Sheet Metal Laser Cutting System Exchange Platform Small Parts Laser Cutter

Product Description

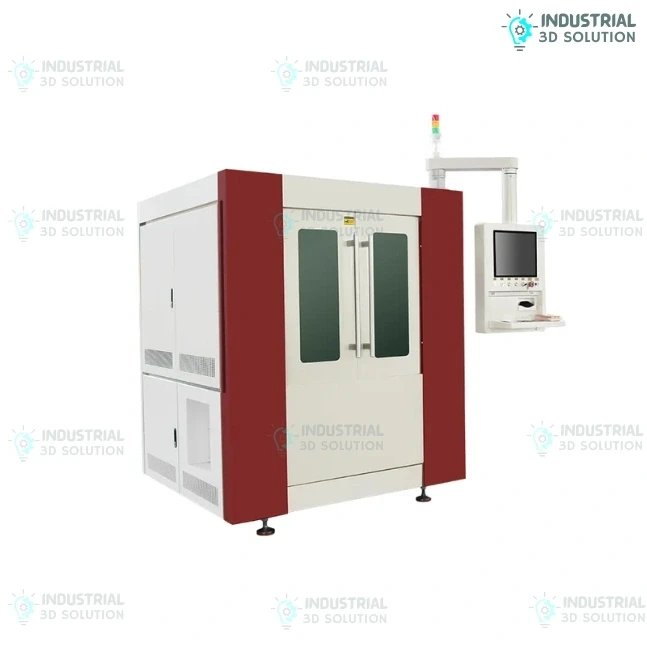

This precision enclosed fiber laser cutting machine is a compact CNC solution designed for high-accuracy metal cutting of small and intricate components. Featuring a 600×600mm working area and a fully enclosed protective design, it ensures safe, stable, and efficient operation for workshops, small industries, and specialized manufacturing sectors in Bangladesh. The machine is ideal for cutting fine details in materials such as stainless steel, carbon steel, aluminum, copper, and even precious metals like gold and silver.

Engineered with a marble base for vibration resistance and a precision ball screw transmission system, this fiber laser cutter delivers consistent cutting accuracy up to ±0.01mm. Its space-saving design, customizable configuration, and reliable cooling system make it a practical and cost-effective solution for businesses seeking high precision laser cutting performance in Bangladesh.

Key Features

• Compact 600x600mm fiber laser cutting machine for precision metal parts
• Fully enclosed CNC laser cutter ensures safe and controlled operation
• High precision laser cutting machine with ±0.01mm accuracy for fine detailing
• Marble base structure improves stability and reduces vibration during cutting
• Ball screw transmission system ensures smooth and accurate motion control
• Exchange platform laser cutter improves workflow efficiency and productivity
• Compatible with multiple laser heads and fiber sources for flexible configuration
• Water-cooled fiber laser system maintains stable temperature and performance
• Dual rail guide system enhances cutting accuracy and long-term durability
• Suitable for cutting gold, silver, stainless steel, aluminum, and copper

Technical Specifications
Material / Type: Enclosed CNC Fiber Laser Cutting Machine
Working Area: 600 × 600 mm
Laser Power: 1000W / 1500W / 2000W / 3000W (Optional)
Laser Wavelength: 1080 nm
Reposition Accuracy: ±0.01 mm
Maximum Acceleration: 1G
Transmission System: Ball Screw Drive
Cooling System: Water Cooling with Protection System

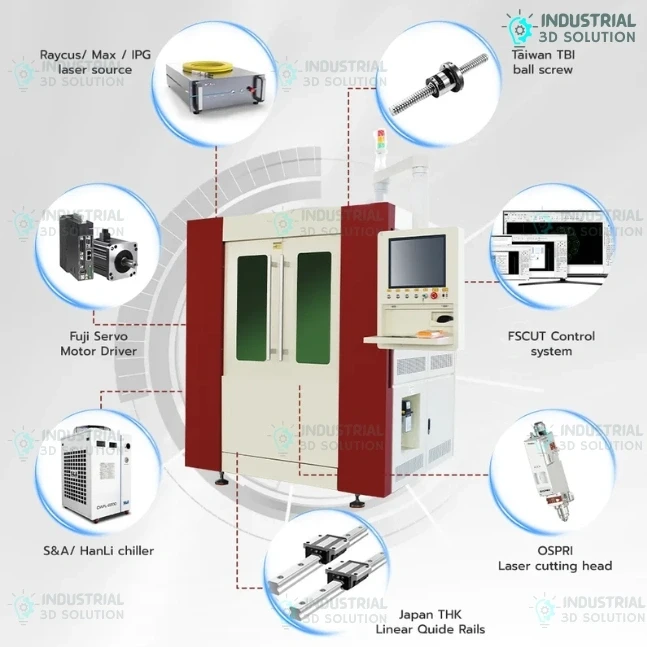

Cutting Head Compatibility: Raytools / Au3tech / Ospri / Precitec
Laser Source Compatibility: Raycus / MAX / IPG / RECI
Chiller Compatibility: S&A / HanLi
Voltage: 220V / 380V, 50/60Hz
Machine Structure: Marble Base + Aluminum Crossbeam
Net Weight: Approx. 1200–1500 kg
Package Weight: Approx. 1400–1700 kg
Package Dimensions (Length × Width × Height in cm): 180 × 150 × 190 cm
Color / Finish: Customizable / Industrial Powder-Coated Finish
Country of Origin: China

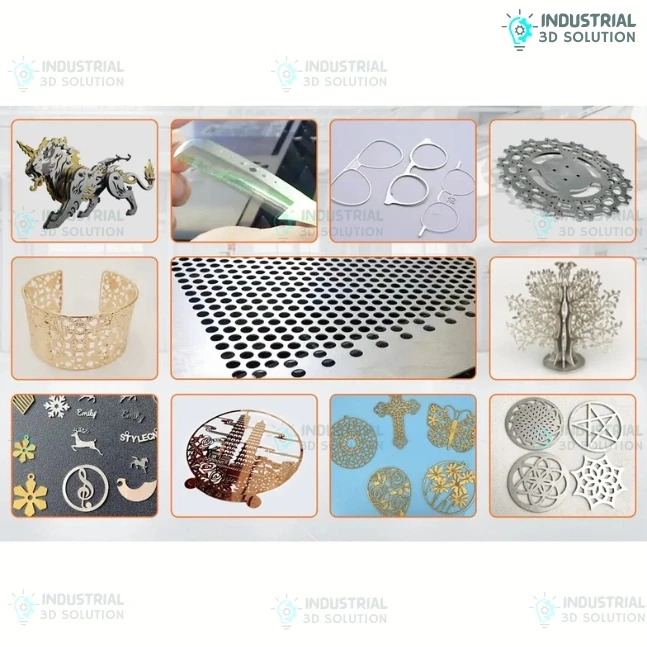

Applications / Use Cases

• Jewelry manufacturing and precision metal cutting
• Eyewear frame production and fine component fabrication
• Small parts production for electronics and instruments
• Stainless steel and aluminum sheet cutting for workshops
• Signage and decorative metal design
• Engineering labs and technical institutes in Bangladesh
• Custom prototyping and small-scale CNC fabrication
• Gold, silver, and copper precision cutting applications

Packaging Information

• Complete enclosed fiber laser cutting machine unit
• Selected fiber laser source (based on configuration)
• Laser cutting head and CNC control system
• Industrial water chiller unit
• Servo system and electrical control cabinet
• Clamping system and working platform
• Full accessory kit and installation tools
• Operation manual and training tutorials
• Secure packaging with full film wrapping and anti-collision protection
• Fumigation-free plywood wooden box with pallet and iron binding

Why Choose This Product

• High precision fiber laser cutting machine for small and intricate parts
• Compact and enclosed design ideal for limited workspace environments
• Stable marble base construction ensures long-term accuracy
• Flexible configuration with multiple laser source and head options
• Cost-effective solution for workshops and small industries in Bangladesh
• Safe operation with fully enclosed protective structure
