xTool F2 Portable Dual Laser Engraver 15W Diode Laser + 5W 1064nm Infrared Laser with Slide Extension Compact Metal and Wood Laser Engraving Machine

Product Description
The xTool F2 Portable Dual Laser Engraver with Slide Extension is a compact professional laser engraving and cutting system designed for multi-material processing. Combining a 15W diode laser with a 5W 1064 nm infrared laser, this dual laser engraver allows users to engrave and cut a wide range of materials including wood, leather, plastics, coated metals, and stainless steel. The slide extension significantly expands the working area, making it suitable for longer objects and batch engraving tasks.

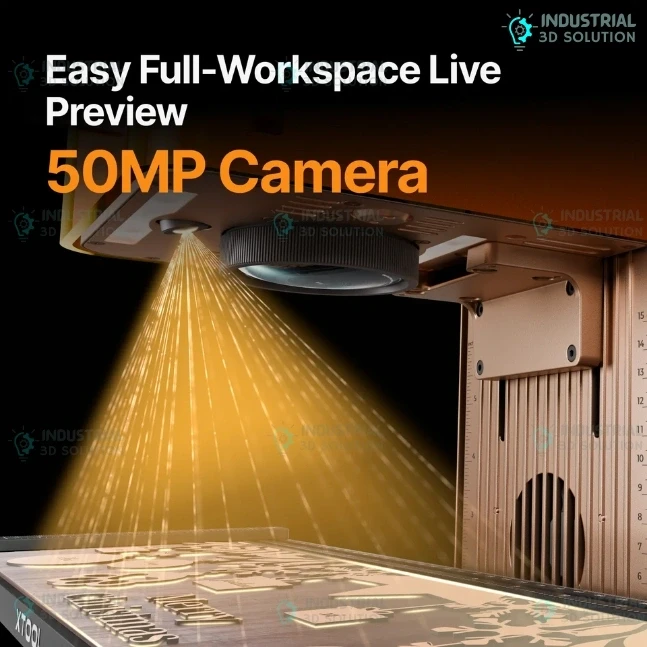

Equipped with a high-resolution 50MP smart camera, the xTool F2 provides live workspace preview and accurate positioning with up to 0.1 mm alignment precision. With engraving speeds up to 6000 mm/s and a portable design, it is suitable for workshops, personalization businesses, engineering labs, and maker spaces in Bangladesh. This portable dual laser engraver provides reliable performance for metal marking, product customization, and small-batch production.

Key Features

• Dual Laser Engraving System – 15W diode laser and 5W 1064nm infrared laser for wood, plastic, and metal engraving

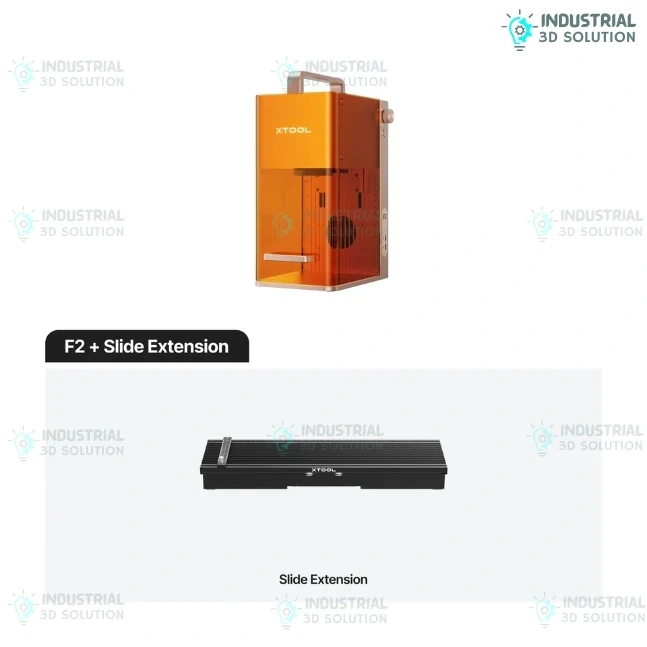

• Slide Extension Working Area – Extended engraving workspace for longer objects and production workflows
• High Speed Laser Engraving – Maximum engraving speed up to 6000 mm/s for efficient production
• 50MP Smart Camera Alignment – Live preview positioning system with up to 0.1 mm accuracy
• Metal Engraving with Infrared Laser – 1064nm IR laser suitable for stainless steel, gold, silver, and coated metals
• Diode Laser Cutting Capability – Effective cutting of wood, leather, paper, MDF, and dark acrylic

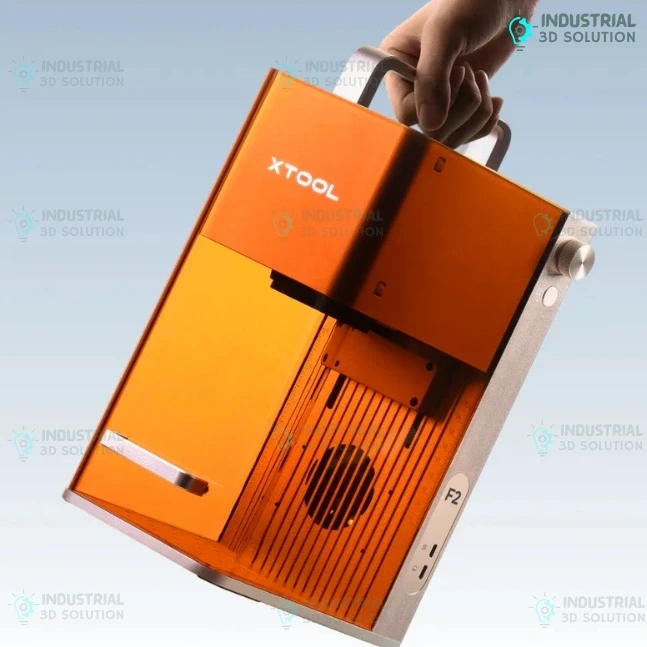

• Compact Portable Laser Engraver – Lightweight design suitable for small workshops and on-site engraving services
• High Precision Laser Spot – Diode spot size 0.08 × 0.06 mm and infrared spot size 0.03 × 0.03 mm
• User-Friendly Operation – Pre-assembled system with camera preview and intuitive software interface

Technical Specifications

Model
xTool F2

Product Type
Portable Dual Laser Engraver

Laser Configuration
15W Diode Laser + 5W 1064 nm Infrared Laser

Processing Modes
Laser Engraving
Laser Cutting

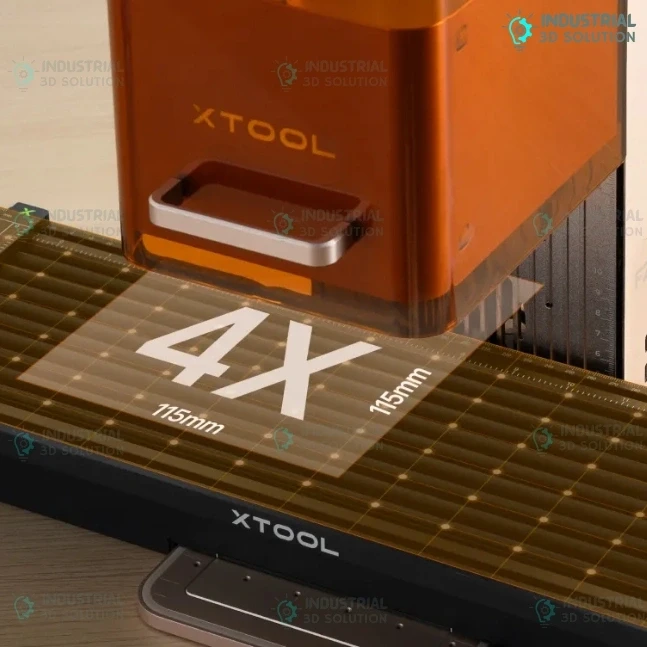

Working Area
115 × 115 mm
400 × 115 mm with Slide Extension

Maximum Engraving Speed
6000 mm/s

Maximum Cutting Capacity (Basswood)
15 mm in multiple passes

Maximum Cutting Capacity (Acrylic)
12 mm in multiple passes

Maximum Processing Height
120 mm

Maximum Rotary Engraving Diameter
120 mm

Laser Spot Size
15W Diode Laser: 0.08 × 0.06 mm
5W Infrared Laser: 0.03 × 0.03 mm

Motion Accuracy
0.00199 mm

Built-in Camera
50MP Smart Camera

Supported Software
xTool Creative Space
xTool Studio
LightBurn

Supported Operating Systems
Windows
macOS

Connection Methods
WiFi
USB
IP Network

Supported File Formats
SVG
DXF
JPG
JPEG
PNG
BMP

Machine Input Power
25V 6.0A (150W)

Power Adapter Input Voltage
100 – 120V AC, 50/60 Hz

Safety Certification
Class 4 Laser Safety

Product Dimensions
17.5 × 23.7 × 33.4 cm

Net Weight
4.6 kg

Package Weight
Approx. 7 kg

Package Dimensions (Length × Width × Height in cm)
50 × 40 × 35 cm

Color / Finish
Matte Black Industrial Finish

Country of Origin
China

Applications / Use Cases

• Metal engraving for stainless steel tags, jewelry, and industrial parts
• Wood engraving and cutting for crafts and decorative products
• Custom product branding and logo engraving
• Leather engraving for wallets, belts, and accessories
• Acrylic engraving for signage and labeling
• Engineering prototyping and product development
• Small-batch manufacturing and workshop production
• Personalization businesses and engraving services
• Maker spaces and fabrication labs
• Educational labs and training workshops in Bangladesh

Packaging Information

The xTool F2 Dual Laser Engraver with Slide Extension is securely packed to protect optical and mechanical components during transportation.

Inside the box:

• xTool F2 Portable Dual Laser Engraver
• Slide Extension Module
• Power Adapter and Power Cable
• USB Connection Cable
• Protective Safety Components
• Installation Tools
• User Manual and Quick Start Guide

All components are packed with protective foam inserts and reinforced outer packaging to ensure safe delivery.

Why Choose This Product

• Dual laser technology enabling both metal engraving and material cutting
• Slide extension increases working area for larger engraving projects
• Portable compact design suitable for small workshops and field use
• High precision camera positioning improves engraving accuracy
• Compatible with professional laser software including LightBurn
• Available for businesses, makers, and workshops in Bangladesh
