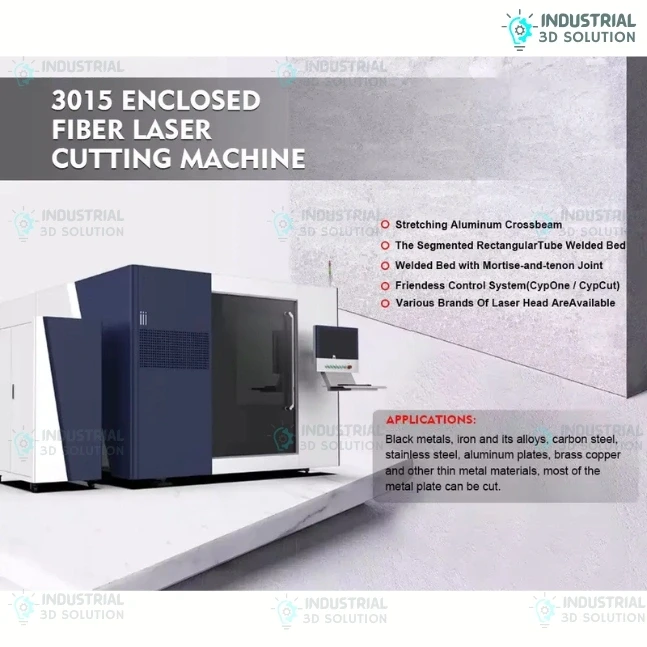

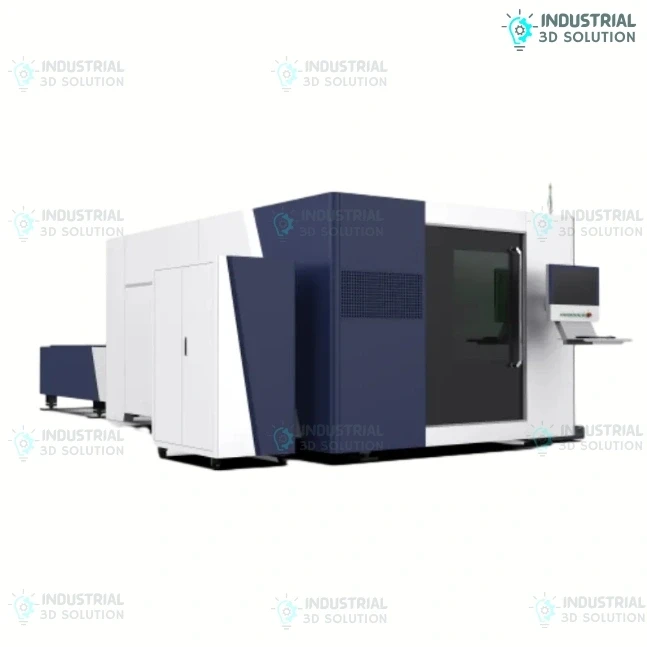

Metal Sheet Fiber Laser Cutting Machine with Exchange Table 3000x1500mm–6000x2000mm Enclosed CNC High Precision Industrial Laser Cutter

Metal Sheet Fiber Laser Cutting Machine with Exchange Table 3000x1500mm–6000x2000mm Enclosed CNC High Precision Industrial Laser Cutter

Product Description
The Metal Sheet Fiber Laser Cutting Machine is a fully enclosed CNC laser cutting solution engineered for high-speed, high-precision metal fabrication in Bangladesh. Designed with an automatic exchange platform and stretching aluminum crossbeam, this machine ensures stable performance, fast processing, and continuous production efficiency. It supports multiple working sizes including 3000x1500mm, 4000x2000mm, and 6000x2000mm, making it suitable for both medium and large-scale industrial applications. With laser power options from 1500W to 12000W, it can efficiently cut stainless steel, carbon steel, aluminum, and other metals. Compatible with AutoCAD and CorelDraw, and supporting multiple file formats, this CNC fiber laser cutter is ideal for workshops, factories, and manufacturing industries seeking productivity, accuracy, and reliability in Bangladesh.

Key Features

• CNC fiber laser cutter with enclosed design for safe and stable industrial operation
• Automatic exchange table laser system for continuous sheet metal cutting and higher productivity
• High precision metal cutter with positioning accuracy within ±0.01mm
• Stretching aluminum crossbeam ensures lightweight structure with strong rigidity
• Wide laser power range (1500W–12000W) for different metal thickness cutting
• DXF compatible laser cutter supporting AutoCAD, CorelDraw and multiple formats
• Water cooled laser cutting machine for stable long-duration performance
• Wireless control handle for flexible and user-friendly machine operation
• Compatible with oxygen, nitrogen, and air for versatile cutting applications

Technical Specifications

• Material / Model / Type: XM-DST / Fiber Laser Cutting Machine / CNC Metal Sheet Cutter
• Working Size Options: 3000 × 1500 mm / 4000 × 2000 mm / 6000 × 2000 mm
• Laser Power: 1500W / 2000W / 3000W / 6000W / 8000W / 12000W
• Laser Wavelength: 1080 nm
• Beam Quality: <0.373 mrad
• Cutting Thickness: 0.5–10 mm (depending on material and power)
• Positioning Accuracy / Tolerance: ±0.01 mm
• Max Idle Speed: 80–110 m/min
• Max Acceleration: 1G
• Compatibility: AutoCAD, CorelDraw; DXF, PLT, AI, LXD, GBX, NC Code
• Cooling System: Water Cooling with Protection System
• Lubrication System: Electrical Motorized
• Auxiliary Gas: Oxygen, Nitrogen, Compressed Air
• Machine Power: 9.3KW / 13KW / 18.2KW / 22.9KW
• Power Supply: 220V 1 Phase / 380V 3 Phase, 50/60Hz
• Net Weight: Approx. 4500–6500 kg (varies by size and configuration)
• Package Weight: Approx. 5000–7200 kg
• Package Dimensions (Length × Width × Height): 500 × 230 × 210 cm (approx., varies by model)
• Color / Finish: Customizable Industrial Coated Finish
• Country of Origin: China

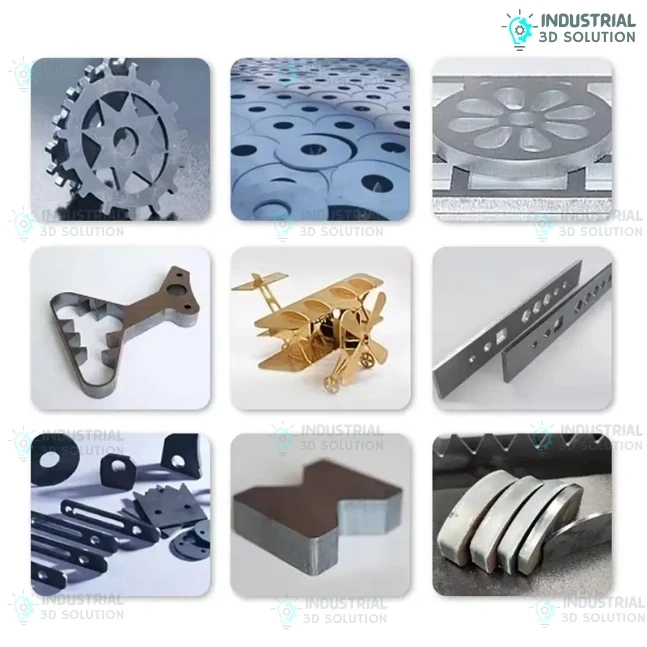

Applications / Use Cases

• Industrial metal fabrication and CNC cutting workshops
• Automotive parts manufacturing and sheet processing
• Electrical panel and enclosure production
• Signage and advertising metal cutting
• Heavy machinery and equipment manufacturing
• Engineering workshops and fabrication units
• Custom metal design, prototyping, and R&D labs
• Steel, aluminum, and copper processing industries

Packaging Information

• 1 × XM-DST Fiber Laser Cutting Machine with exchange table
• Full machine protective film packaging
• Anti-collision edge protection materials
• Fumigation-free plywood wooden box with pallet base
• Reinforced iron binding straps for secure transport
• Includes accessories, wireless control handle, and operation tutorials

Why Choose This Product

• Enclosed fiber laser cutting system for enhanced safety and dust control
• Automatic exchange platform improves production efficiency and reduces downtime
• High precision and stable cutting performance for industrial applications
• Flexible size and power configurations for different business needs
• Compatible with major design software and multiple cutting gases
• Available with supply, installation, and support in Bangladesh
