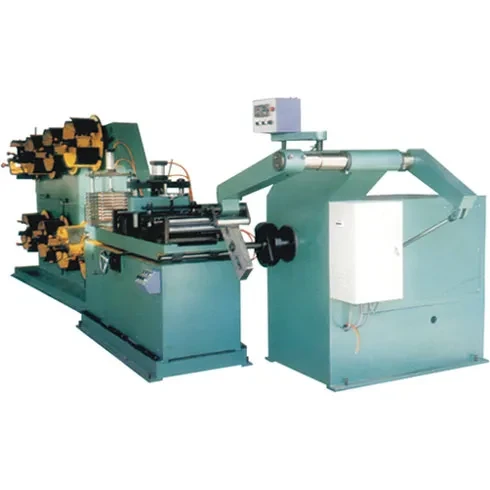

Transformer core winding machine for CRGO cores round section, trapezoidal section, rectangular section, combined section, etc

Main technical data:
 1 Suitable core shape: plane & tridimensional
 2 Suitable core sections: round, trapezoidal, round+trapezoidal, rectangle
3 Max. core column diameter: plane 230mm; tridimensional 300mm
 4 Max. workpiece weight: 1.5T
 5 Suitable transformer capacity range: 1) Plane: 30~800kVA 2) 3D: 30~1600kVA
6 Position device: 1) Automatic positioning, min. strip width 8mm, max. strip width 340mm 2) Two pneumatic clamping & damping stations and two positioning stations 3) Damping force can be adjusted with pneumatic pressure meter displaying
7 Max. turning radius: 650mm
8 Max. winding speed: 55rpm (average speed 0~30rpm)
 9 Speed adjusting method: Mitsubishi inverter control 10 Main driving motor power: 5kW 11 Max. torque of the main winding spindle: about 1300N·m 12 Dimension: about 6m x 1.5m x 1.4m 13 Weight: about 2000kg
