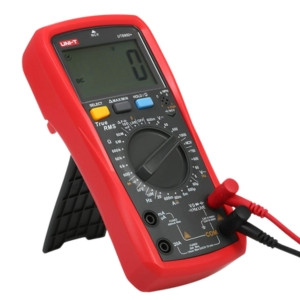

UNI-T UT890D+ True RMS 6000-Count Digital Multimeter – Precision Meets Protection

The UNI-T UT890D+ is a high-performance True RMS digital multimeter engineered for professionals and enthusiasts who demand accurate, reliable, and comprehensive measurement capabilities. With a large 6000-count display and fast response time, it stands out as a versatile and durable tool for electrical diagnostics, electronics repair, and industrial measurements.

Key Highlights:

• True RMS Accuracy: Unlike traditional multimeters, the UT890D+ provides accurate readings for both sinusoidal and non-sinusoidal AC signals—critical when working with variable frequency drives, inverters, or non-linear loads.

• Capacitance Measurement Up to 100mF: Perfect for measuring large capacitors used in power supplies and motor start circuits, with a quick measurement time of less than 12 seconds.

• NCV & LIVE Detection: Includes non-contact voltage detection (NCV) with both visual and audible indicators. The LIVE function easily identifies live and neutral wires for safer installations.

• Comprehensive Protection: Built-in high voltage false detection (up to 1000Vrms) and fuse blown alarm ensure user safety and device longevity. An over-current alarm (>20A) protects the multimeter from accidental overloads.

• Wide Measurement Range:

  • DC Voltage: Up to 1000V (±0.5%+2)

  • AC Voltage: Up to 750V (±0.8%+3)

  • Current (AC/DC): Up to 20A

  • Resistance: Up to 60MΩ

  • Frequency: 9.999Hz–9.999MHz

  • Capacitance: 6.000nF – 100.0mF

  • Temperature: –40℃ to 1000℃ / –40°F to 1832°F

• Professional Grade Features:

  • Manual Range Control

  • Max/Min Recording

  • Relative Measurement (REL)

  • Data Hold Function

  • Diode and hFE Transistor Test

  • Auto Power Off (15 mins) & Backlight (30s)

• Visual & Audible Feedback: Acousto-optic alerts during continuity and NCV tests enhance safety and convenience in noisy environments.

Built for Professionals:

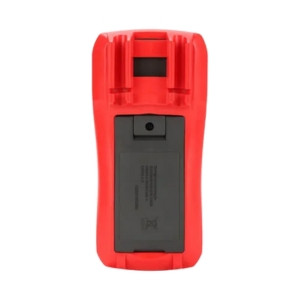

Encased in a durable red and gray housing, the UT890D+ is lightweight at just 346g, with a sturdy form factor (183mm x 88mm x 56mm) that’s easy to handle in any field situation. Safety is assured with CAT II 1000V / CAT III 600V ratings.

Packaging & Accessories:

• Power: 2 x 1.5V Batteries

• Standard Package: Gift Box + User Manual

• Bulk Packaging: 40 units/carton

• Carton Size: 690mm x 450mm x 340mm

• Gross Weight: 23Kg

Ideal Applications:

• Electrical & HVAC troubleshooting

• Home appliance repair

• Automotive diagnostics

• Industrial maintenance

• Educational electronics labs
