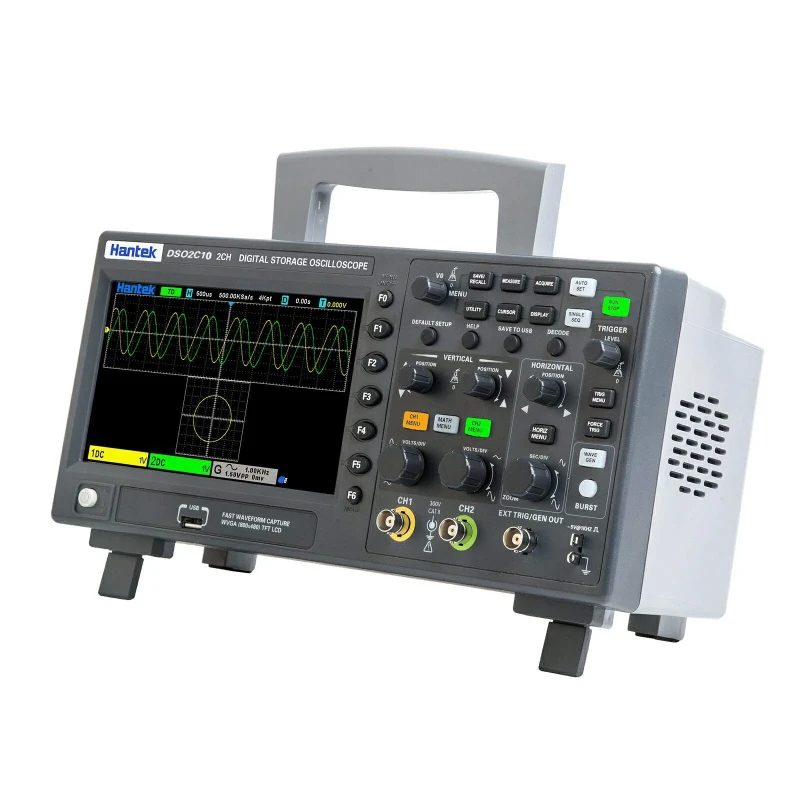

• NEW MODEL - the hantek bench oscilloscope DSO2C10 is the new model launched by Hantek in 2020, aimed to be cost-effective and quality stable;
• MULTI-FUNCTION - the digital storage oscilloscope is with 100mhz bandwithd, dual channel, 8M memory depth,1 GSa/s real-time sample rate;Auto measurement Supports: frequency, period, mean, peak-to-peak, RMS, minimum, mixmum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF;
• PROBE ATTENUATION FACTOR - 1X, 10X, 100X, 1000X;
• NO AWG function for DSO2C10, DSO2C15; If need AWG, please kindly go for DSO2D10 or DSO2D15;

Key Features

Cost-effective And Economical Oscilloscope

• 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors);
• 5-digit digital voltmeter and 6-digit hardware frequency counter functions;
• Setting, waveform, reference waveforms, CSV, pictures and other data formats record function;
• Supports SCPI programming command control;
• Support 32 kinds automatic measurement and statistics functions;
• Supports 14 trigger modes, standard five serial protocol triggering and decoding;
