Product Overview

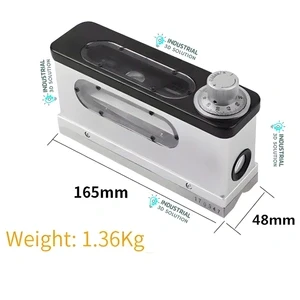

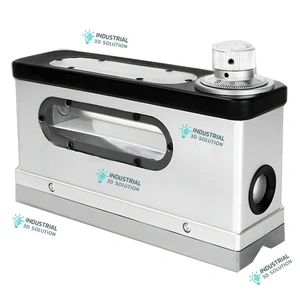

The UltraPrecision 0.01mm Optical Machine Level is a high-accuracy optical imaging level instrument engineered for precision CNC machine alignment, machine tool leveling, table flatness correction, and industrial maintenance calibration. Designed for environments where micron-level accuracy matters, this optical machine level delivers exceptional stability, fast readability, and long-term measurement reliability.

Unlike conventional bubble levels, this optical precision level uses a high-contrast imaging system to provide clear, distortion-free readings, making it ideal for CNC machining centers, lathes, milling machines, grinders, and heavy industrial equipment. Its 0.01mm sensitivity ensures accurate detection of minute angular deviations critical for machine performance, product quality, and tool life.

This instrument is widely used in manufacturing plants, tool rooms, calibration labs, and industrial maintenance departments where machine alignment accuracy directly impacts productivity and precision output.

Key Features

• Ultra-High Accuracy 0.01mm Sensitivity
  Delivers precise measurement for fine machine alignment and leveling tasks.

• Optical Imaging Measurement System
  Clear, magnified optical scale ensures fast, error-free reading even in low-light workshops.

• Designed for CNC & Machine Tool Alignment
  Ideal for CNC machining centers, milling machines, lathes, grinders, and industrial tables.

• Stable & Rigid Construction
  Heavy-duty body minimizes vibration interference during measurement.

• Precision-Ground Base Surface
  Ensures perfect contact with machine beds and tables for reliable results.

• Fast Calibration & Easy Operation
  Reduces machine downtime during maintenance and setup.

• Industrial-Grade Durability
  Built for long-term use in harsh factory and workshop environments.

• Wide Application Compatibility
  Suitable for mechanical workshops, metrology labs, production lines, and maintenance teams.

Technical Specifications

• Measurement Sensitivity: 0.01 mm

• Type: Optical Imaging Machine Level

• Application: CNC alignment, machine leveling, table adjustment

• Reading Method: Optical scale imaging

• Base Surface: Precision-ground flat base

• Accuracy Class: High-precision industrial grade

• Operating Environment: Industrial / Workshop / Metrology lab

• Usage: Horizontal machine alignment & leveling

Applications

• CNC machine alignment & calibration

• Machine tool table flatness correction

• Lathe, milling & grinding machine leveling

• Industrial equipment installation

• Preventive maintenance & accuracy inspection

• Tool room & metrology quality control

Benefits for Industrial Users

• Improves machining accuracy and surface finish

• Extends tool and machine lifespan

• Reduces vibration-related defects

• Minimizes rework and production errors

• Enhances overall production efficiency
