Product Description

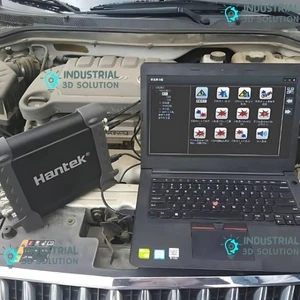

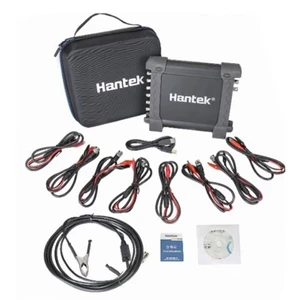

The Hantek 1008C Automotive Oscilloscope is a professional-grade diagnostic tool designed for mechanics, auto electricians, and engineers who require high-precision signal analysis and real-time engine diagnostics. With its 8-channel simultaneous input, this PC-based oscilloscope allows users to capture multiple engine signals, ignition waveforms, injector patterns, and sensor outputs for advanced troubleshooting.

Equipped with a programmable signal generator and auto ignition probe, the Hantek 1008C is more than just an oscilloscope — it’s a complete automotive diagnostic solution. From testing crankshaft and camshaft signals to monitoring fuel injectors, ABS sensors, and ignition systems, this device ensures fast, accurate, and reliable diagnostics for cars, motorcycles, and light trucks.

Key Features

• ✅ 8-Channel Simultaneous Input – Analyze multiple signals at once for complete engine monitoring.

• ✅ PC-Based USB Oscilloscope – Plug & play with laptop/PC for easy waveform display and analysis.

• ✅ High Bandwidth & Sampling Rate – Capture fast-changing automotive signals with accuracy.

• ✅ Programmable Signal Generator – Output test waveforms for component and circuit verification.

• ✅ Ignition Probe Support – Safely test ignition systems without direct electrical contact.

• ✅ Wide Automotive Applications – Diagnose sensors, actuators, fuel injectors, ignition coils, ABS, ECU signals & more.

• ✅ Data Acquisition (DAQ) Function – Log and record data for long-term vehicle testing.

• ✅ Portable & Compact Design – Easy to carry for workshop, garage, or field testing.

• ✅ User-Friendly Software – Real-time waveform display, measurement tools, and data export options.

Technical Specifications

• Model: Hantek 1008C

• Channels: 8 input channels

• Bandwidth: Up to 100 kHz (suitable for automotive signals)

• Sample Rate: Up to 2.4MS/s

• Input Voltage Range: ±50V (with protection circuit)

• PC Connection: USB 2.0 interface

• DAQ Support: Yes, data logging & waveform storage

• Signal Generator: Programmable waveform output

• Software Compatibility: Windows OS (supports waveform analysis & export)

• Supported Tests: Engine ignition, fuel injection, ABS, ECU, crankshaft/camshaft, sensors, actuators, electrical signals

• Power Supply: USB powered, no external adapter required

• Weight & Size: Lightweight & portable design for automotive workshops

Applications

• ? Engine Diagnostics – Ignition, fuel injection, crankshaft & camshaft sensor testing

• ⚡ Electrical System Analysis – Alternator, battery, ECU, actuator & relay monitoring

• ? Automotive R&D & Maintenance – Ideal for mechanics, engineers, and vehicle testing labs

• ? Sensor & Signal Testing – ABS, throttle, oxygen sensor, and electronic control signals

• ? Data Logging & Research – Record and export long-term signal data for professional analysis

Why Choose the Hantek 1008C?

The Hantek 1008C Automotive USB Oscilloscope is trusted worldwide for precision, versatility, and affordability. Whether you’re a professional mechanic, automotive engineer, or electronics enthusiast, this oscilloscope delivers the tools you need to diagnose complex vehicle issues with confidence.
