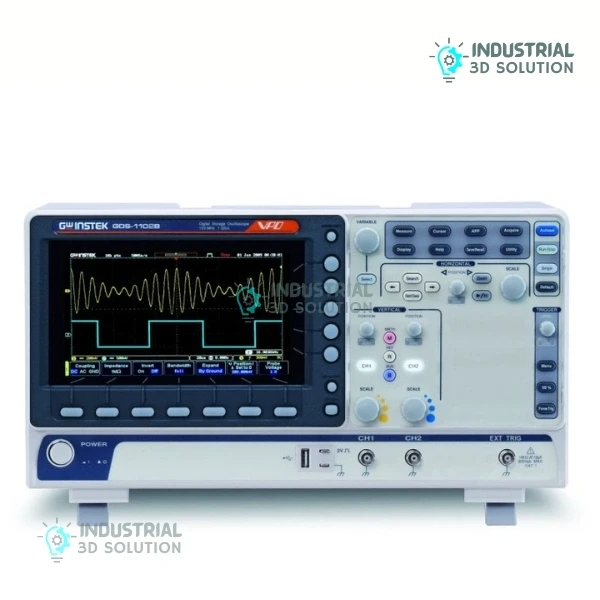

GW Instek GDS-1102B 100MHz 2 Channel Oscilloscope

The GW Instek GDS-1102B digital storage oscilloscope is a tool for electronics testing. It features two channels and a 100MHz bandwidth. This unit helps students and engineers in Dhaka measure signals. You can buy this device from TechShopBD for your laboratory. The 1GSa/s real-time sampling rate allows you to view high-frequency signals. Users need accurate data for testing circuits. This machine provides that accuracy with a 10M memory depth on each channel.

The 7-inch WVGA display makes reading graphs easy. It uses a color screen to separate different signal paths. You can connect the unit to a computer through the LAN port. This feature helps you transfer data for reports. The USB ports allow you to save waveforms to a flash drive. The interface is simple. You find the knobs and buttons in logical places.

Is this oscilloscope good for beginners?
Yes, the simple layout helps new users learn quickly. Students in Bangladesh choose this model for its features. It handles basic and advanced tasks. You can measure voltage, frequency, and time with a few clicks. The plastic casing feels solid. It stays stable on a workbench.

The GW Instek GDS-1102B price in Bangladesh varies based on stock. TechShopBD keeps this item for local buyers. You get the power cord and two probes in the box. These probes are rated for the 100MHz bandwidth. Use the calibration port on the front to keep your readings correct. This tool helps you find faults in power supplies and control boards.

The device supports many trigger types. You can trigger on edges, pulses, or video signals. This flexibility helps with complex digital systems. The waveform update rate is fast. You see changes on the screen quickly. This performance makes the GDS-1102B a choice for a 100MHz digital storage oscilloscope.

You can view the mathematical functions of signals. The unit calculates addition. It performs subtraction and multiplication of waveforms. It performs Fast Fourier Transform operations. This helps you analyze the frequency spectrum. The weight of the device is light. You can carry it between stations in your workshop.

Engineers use the LAN port for remote control. This allows you to monitor tests from a distance. The software comes with the package. It works on most standard computers. The vertical sensitivity ranges from 1mV to 10V per division. This range covers small sensor signals and large power signals. You get a clear view of noise.

The GDS-1102B includes a go/no-go function. This function checks for signals staying within specific limits. It works for production lines. You can set the limits. The machine alerts you to errors. This saves time during repetitive testing. TechShopBD offers support for this GW Instek product. You can visit the store or order online for delivery.

Product Specifications

• Bandwidth: 100MHz

• Channels: 2

• Real-time Sampling Rate: 1GSa/s

• Memory Depth: 10M per channel

• Waveform Update Rate: 50,000 wfms/s

• Display: 7-inch WVGA color LCD

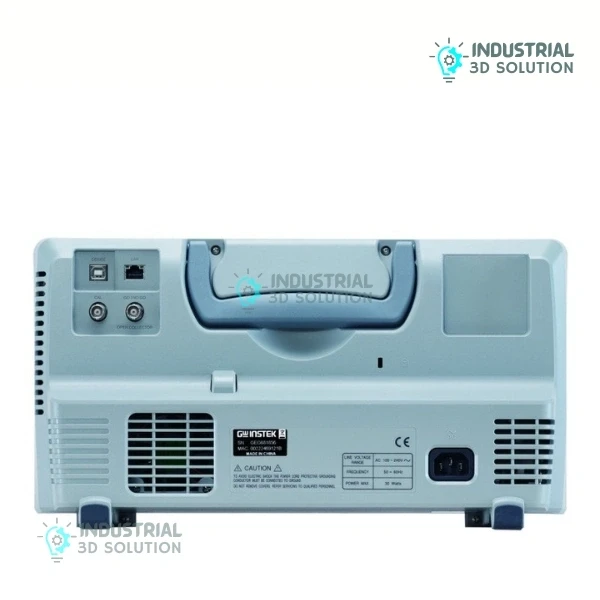

• Interface: USB host, USB device, LAN port

• Vertical Sensitivity: 1mV/div to 10V/div

Frequently Asked Questions

Does the package include probes?
Yes, the box contains two 100MHz passive probes. You also receive a power cord and a user manual. TechShopBD provides the standard manufacturer accessories with every purchase.

Can I save data to a USB drive?
Yes, the front panel has a USB host port. You can save screenshots and waveform data directly to a flash drive. This makes sharing your findings with other engineers easy.

Where can I find the GW Instek GDS-1102B price in BD?
You can check the current price on the TechShopBD website. Prices change based on import costs and availability. The website shows the latest cost for customers in Bangladesh.
