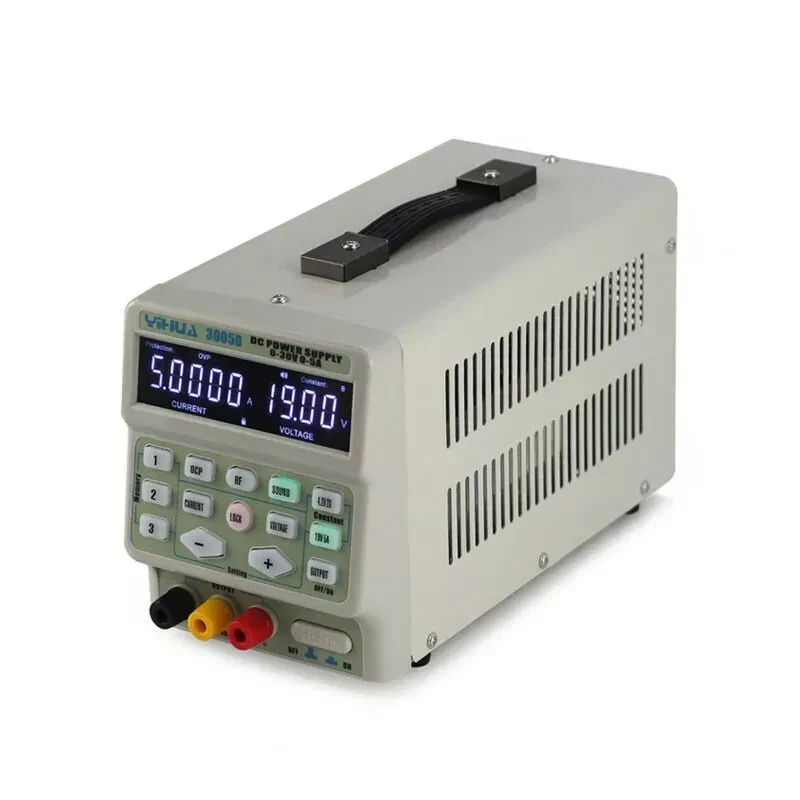

Adjustable Yihua feeder mod. 3005d, variable voltage between 0-30V and max current 5A DC change. Modello 3005D CONSUMO 150W Delivery 220V ± 10% 50Hz Adjustable Voltage/Current 0 ~ 0 ~ 30.00V 5.0000A Environmental Conditions Temperature: 0 ~ 40°C Relative Humidity Dimensioni L268 × W125 × H155 mm ± 5mm PESO 2.3 kg output voltage accuracy ± 0.02 V voltage coefficient hum voltage noise OCP current value 0-5 A, accuracy: ± 0.01 A signal test frequency range 30 ~ 1800 MHz including mobile phone signal test signal strength > 10 dBM.

About this item

• YIHUA 3005D is supported by a modern digital control of a microprocessor power supply, which allows greater control accuracy of voltage and current values. Very lightweight, easy to carry anywhere.
• Has high efficiency, low noise and high loads, a stable and linear power supply. In addition, has a low ripple factor and is protected against short circuit and overload.
• Current and voltage are digitally monitored for greater accuracy in settings and better durability than conventional potentiometers. The function button lock prevents random variations of voltages or currents that can damage the power supply.
• Two very important functions for mobile phone workshops are: the detection of a high frequency signal from GSM mobile phones and 2 fixed outputs 4.2 V 2 A / 19 V 5 A. The parameters can be displayed by pressing the key combination. Functions are for repairing mobile phones and notebooks.
• Equipped with three banks (already on 3-5 and 9 volts), which can be reset very easily as desired.
