XM-6024T Fiber Laser Tube Cutting Machine CNC Metal Pipe & Profile Cutter 1500W–6000W Power Range 6000mm Length φ10–240mm Capacity

Product Description

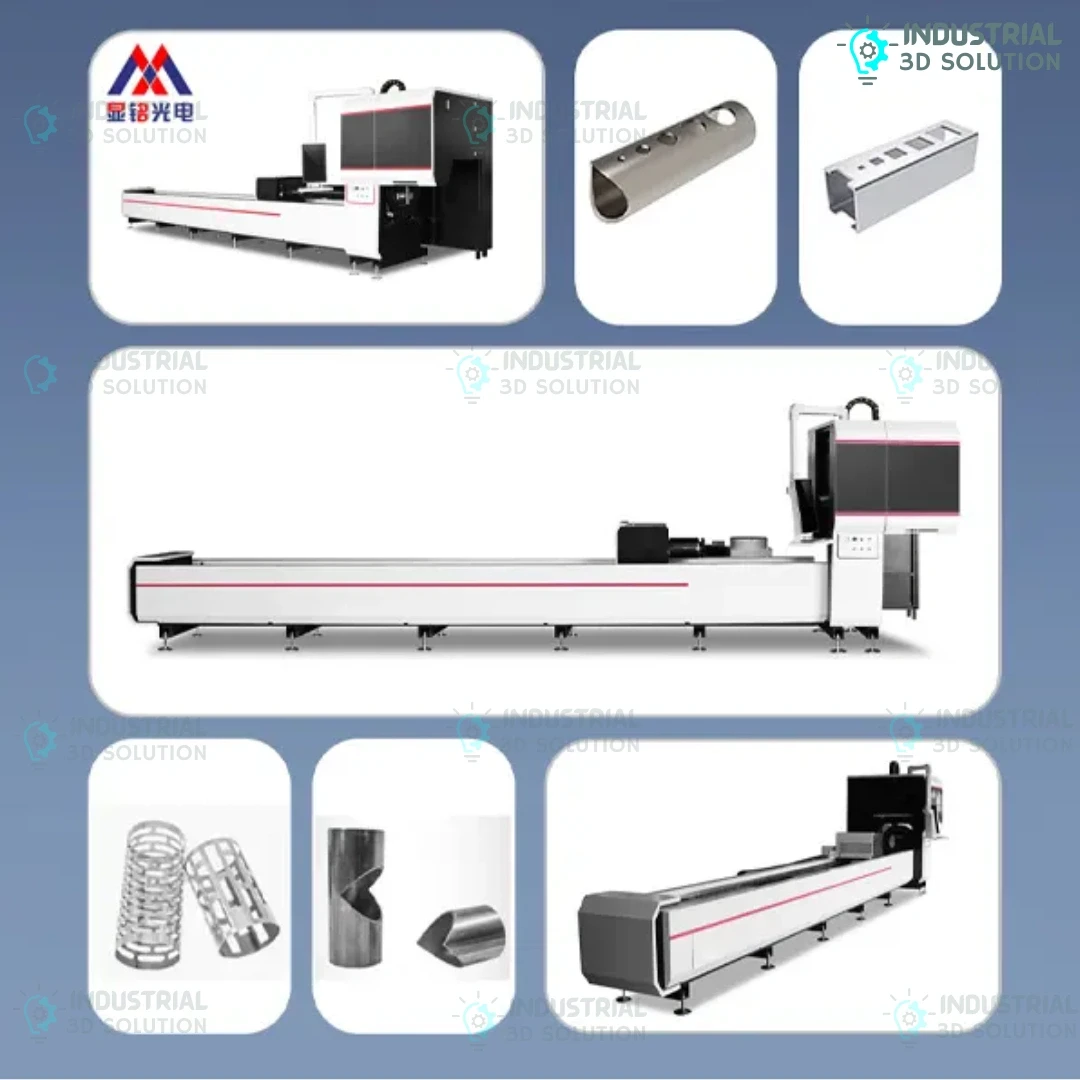

The XM-6024T fiber laser tube cutting machine is a professional CNC solution engineered for high-precision cutting of metal pipes, tubes, and profiles. Designed for industrial manufacturers, fabrication workshops, and engineering sectors in Bangladesh, this machine delivers efficient and accurate processing for round, square, and complex tube geometries.

With a working length of 6000mm and cutting diameter range of φ10–240mm, the XM-6024T supports a wide variety of tube sizes. Equipped with advanced TubePro control software, automatic focusing laser head, and intelligent support system, it ensures smooth, burr-free cutting with minimal material waste. The heavy-duty welded structure enhances stability, making it ideal for continuous industrial use. This machine is a reliable choice for businesses seeking improved productivity, reduced processing time, and consistent cutting performance.

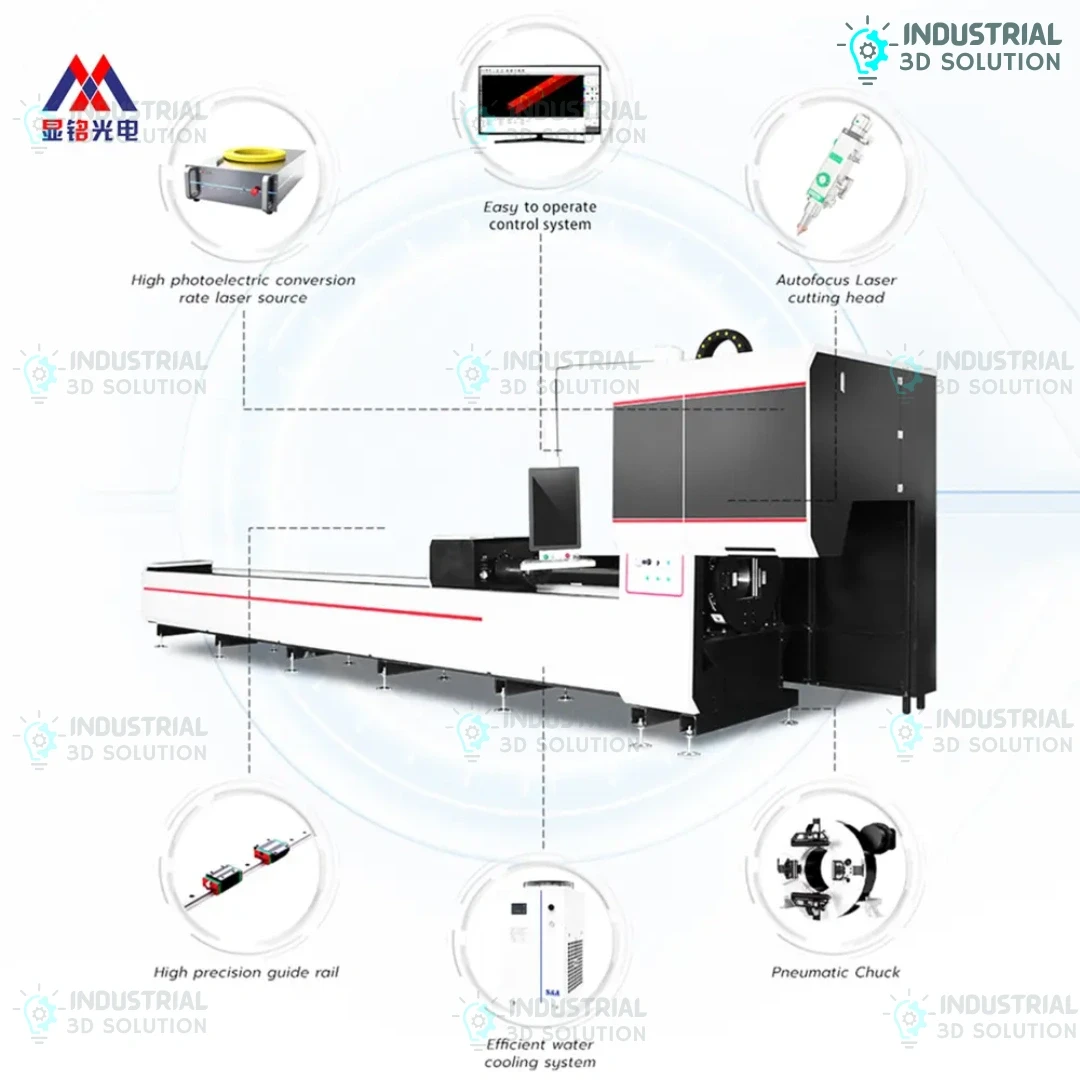

Key Features

• High precision fiber laser tube cutting machine with ±0.05mm accuracy for industrial applications
• Wide tube diameter support (φ10–240mm) suitable for diverse pipe cutting needs
• 6000mm tube length capacity for long material processing and high-volume production
• Heavy-duty carbon steel welded bed ensures stability, low vibration, and durability
• Intelligent automatic support system prevents tube deformation during cutting
• Advanced TubePro software with nesting optimization for efficient material utilization
• High-performance auto-focus laser cutting head for improved cutting quality
• Servo motor and driver system for stable and precise CNC motion control
• Fully enclosed chuck system with strong clamping force and dust-proof design
• Compatible with multiple laser sources (Raycus, MAX, IPG) for flexible configuration

Technical Specifications

Model
XM-6024T

Machine Type
Fiber Laser Tube & Pipe Cutting Machine

Working Area
6000 × φ10–240 mm

Working Table Travel
Y: 6000 mm | X: 250 mm | Z: 200 mm

Laser Power Options
1500W / 2000W / 3000W / 4000W / 6000W

Positioning Accuracy
±0.05 mm

Maximum Rotational Speed
85 r/min

Maximum Acceleration
1G

Cooling Method
Water Cooling Protection System

Control System
TubePro CNC Control

Cutting Head Options
Raytools / OSPRI / Au3tech / WSX / Precitec

Laser Source Options
Raycus / MAX / IPG

Material Compatibility
Stainless Steel, Carbon Steel, Mild Steel, Aluminum, Brass, Copper, Alloy Steel

Supported Tube Shapes
Round, Square, Rectangular, Oval, Custom Profiles

Net Weight
Approx. 6000 – 9000 kg

Package Weight
Approx. 7000 – 10000 kg

Package Dimensions (L × W × H)
Approx. 780 × 220 × 200 cm

Color / Finish
Industrial White with Anti-Corrosion Coating

Country of Origin
China

Applications / Use Cases

• Metal pipe and tube fabrication industries
• Automotive chassis and exhaust component manufacturing
• Steel structure and construction projects in Bangladesh
• Furniture and decorative metal tube cutting
• Electrical conduit and pipeline manufacturing
• Agricultural machinery production
• Industrial engineering workshops and CNC fabrication units
• Signage and metal frame production
• Aerospace and precision engineering applications

Packaging Information

• Complete machine wrapped with protective film
• Anti-collision edge protection for safe transportation
• Fumigation-free plywood wooden box with reinforced pallet
• Secured with industrial-grade iron binding straps
• Export-ready packaging suitable for long-distance shipping

Why Choose This Product

• Designed specifically for high-efficiency tube and pipe cutting operations
• Strong mechanical structure ensures long-term industrial reliability
• Advanced software and automation reduce manual workload and errors
• Supports multiple tube shapes and materials in one machine
• Cost-effective solution for metal fabrication businesses in Bangladesh
• Available with flexible configurations based on production requirements
