Description:

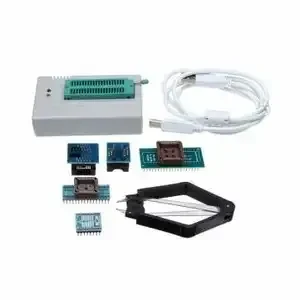

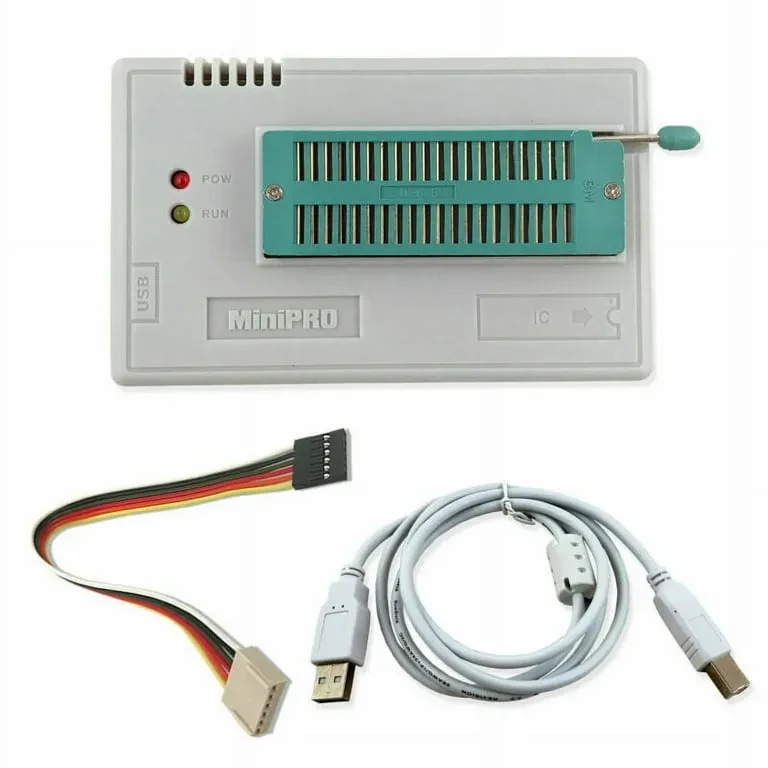

100% Original New V8.33 TL866II Plus Universal Minipro Programmer+28 Adapters+Test Clip TL866 PIC Bios High speed Programmer

1. ICSP interface (6-pin interface of the programmer right side) is limited to the TL866A model.

2. Partly Microchip’s MCU with More than 40pins require the use of the TL866A for ICSP interface programming.
Most of Microchip’s PICs MCU support programming on ICSP and 40PIN seat.

3. About ATMEGAxxxx and SYNCMOS’s MCU SM89xxx SM59xxx
TL866A support serial programming on ICSP and parallel programming on seat.
TL886CS only support parallel programming on seat.

4. AT45DBxxxx can only be programmed using the ICSP interface (TL866A only).

5. To all other chips. TL866A and TL866CS no diffrent.
Both programmers work with genuine TL866 Adapters for devices up to 48 pins.

The Outstanding advantages of TL866II programmer:

1. Support simultaneously burn with 4 Programmers each computer.

2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.

3. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.

4. Best internal 40 foot over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.

5. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH, Support NAND Flash.

6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. ans 24/25/93 Serial ISP supported.

7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.

8. Chip auto serial number is the most complete and practical.

9. Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.

10. Automatic test chip pin contact bad or wrong plug, avoid damage device.
