? Product Overview

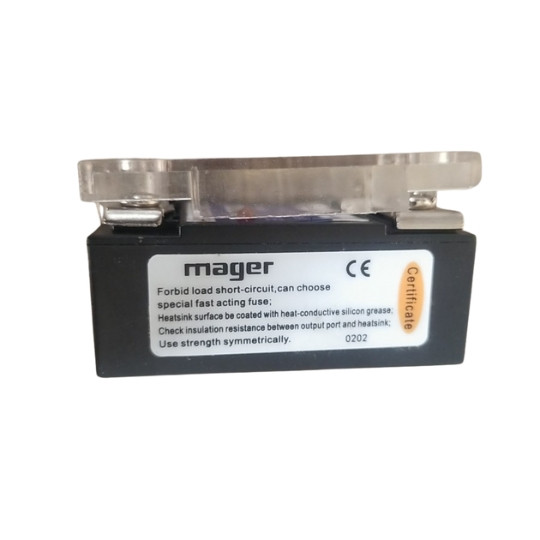

The Mager MGE-30323840Z is a high-performance, three-phase solid state relay (SSR) designed for industrial applications requiring reliable and fast switching of AC loads. With a DC control voltage range of 3–32V and a load capacity of up to 40A, this SSR is ideal for controlling heavy-duty equipment such as motors, heaters, and lighting systems. Its zero-crossing trigger control method ensures minimal electrical noise and extends the lifespan of connected devices.​UrukTech+4Mechblock+4robosavvy.co.uk+4

⚙️ Key Specifications

• Input Control Voltage: 3–32V DC

• Trigger Current: ≤20mA

• Load Voltage Range: 24–480V AC (Three-phase)

• Load Current: 40A

• Control Type: Zero-crossing trigger

• Response Time: ON < 20ms / OFF < 40ms

• Dielectric Strength: Over 2.5kVAC for 1 minute

• Insulation Resistance: Over 50MΩ at 500V DC

• Operating Temperature Range: -20°C to +85°C

• Dimensions: 105mm × 74mm × 33mm

• Mounting: Panel mount with screw terminals

• Housing Material: High-strength ABS engineering plastic with a transparent protective cover​ABRA Electronics+2HUIMU electronics+2HUIMU electronics+2Futurlec+2UrukTech+2Mechblock+2FuturlecSparkFun Electronics+7HUIMU electronics+7HUIMU electronics+7

? Features

• High Reliability: Utilizes TRIAC output components for consistent performance in demanding environments.

• Low Input Current: Efficient operation with minimal control current requirements.

• LED Indicator: Built-in LED displays output status for easy monitoring.

• Protective Circuitry: Standard RC snubber circuit included to suppress voltage spikes.

• Compact Design: Space-saving form factor suitable for various industrial control panels.​Chicago Electronic Distributors+6HUIMU electronics+6HUIMU electronics+6

?️ Installation & Cooling Recommendations

• Heat Dissipation: For load currents exceeding 10A, it is recommended to use a heat sink. For currents above 40A, an air-cooled or water-cooled radiator should be installed to ensure optimal performance and longevity.

• Inductive Loads: When controlling inductive loads, connect a varistor in parallel with the output terminals. The varistor's voltage rating should be 1.6 to 1.9 times the load voltage to protect against voltage spikes.​HUIMU electronics

? Applications

• Industrial Automation: Control of motors, conveyors, and robotic systems.

• Heating Systems: Regulation of industrial heaters and ovens.

• Lighting Control: Management of large-scale lighting installations.

• HVAC Systems: Operation of fans, compressors, and pumps.
