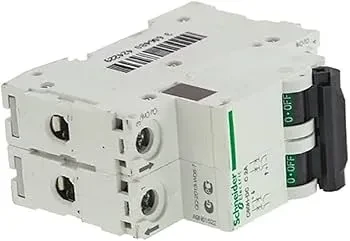

Schneider Miniature Circuit Breaker - xC60-2 Poles - 32 A - C Curve 2P Circuit Breaker (A9N2P32C)
Official Store
৳360.00
৳420.00
-14% OFF
/pcs
Inclusive of all taxes
Best Price Guarantee
Delivery in 4 Days
100% Authentic
Genuine Brand Guarantee
Cash on Delivery
Pay When You Receive
7-Day Warranty
Hassle-Free Replacement
1
TIG Welding Tungsten Electrode 2.4mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#2
TIG Welding Tungsten Electrode 1.6mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#3
Solder Crystal Rosin Flux BK-220 by BAKU – Clean Soldering, Smooth Connections
#4
Bambu Lab PLA Matte Ivory White Filament 1.75mm – Premium 3D Printing Material for Smooth, Precise Prints
#5
Beelayers Pla+ Black 3D Printer Filament 1.75mm
#6
Beelayers PLA+ White 3D Printer Filament 1.75mm – High Strength PLA Plus Filament for FDM 3D Printing
Product description
Schneider This Acti9 xC60 is a multistandard low voltage biconnect miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 32A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000 A at 415VAC conforming to EN/IEC 60898-1 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects the circuit against short circuits and overload currents. The presence of the green strip guarantees the physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Use operational voltage is going from 240VAC. The Ui-rated insulation voltage is 500VAC. The Uimp-rated impulse withstands voltage is 6kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. Its width is 4 pitches of 9mm. Pollution degree is 3. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 77.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in the enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.
About this item
- Rated operational voltage: 240 V AC 50/60 Hz 380...415 V AC 50/60 Hz 100...125 V DC
- Network frequency: 50/60 Hz
- Utilisation category: Category A Conforming to EN/IEC 60947-2
- Suitability for isolation: Yes conforming to EN/IEC 60947-2
- Trip unit technology: Thermal-magnetic
Technical Specifications
Official specifications for Schneider Miniature Circuit Breaker - xC60-2 Poles - 32 A - C Curve 2P Circuit Breaker (A9N2P32C).
| Specification | Details |
|---|---|
| Product Name | Schneider Miniature Circuit Breaker - xC60-2 Poles - 32 A - C Curve 2P Circuit Breaker (A9N2P32C) |
| Brand / Manufacturer | Schneider |
| Category | Electric Items |
| Unit | pcs |
| Power Compatibility | 220V AC, 50Hz (Standard Bangladesh Grid Compatible) |
| Warranty & Service | Official Warranty & Technical Support at Industrial 3D Solution, Dhaka |
| Delivery Coverage | Fast Delivery inside Dhaka & Nationwide Courier to all 64 Districts |
-
