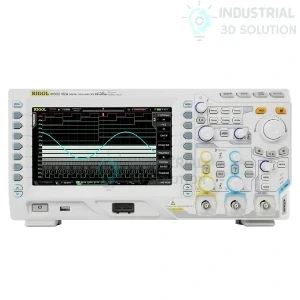

Rigol MSO2102A Mixed Signal Oscilloscope – 100MHz, 2 Analog + 16 Digital Channels, 1GSa/s, Deep Memory

(0 reviews)
Estimate Shipping Time: 12 Days
Brand
Rigol

Inhouse product


Price
৳157,350.00 /pcs
Quantity
Total Price
Share

Reviews & Ratings

0.00 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

The Rigol MSO2102A Mixed Signal Oscilloscope is a powerful and reliable solution for engineers, technicians, and educators who require high-precision signal analysis. With a 100MHz bandwidth, 2 analog channels, 16 digital channels, and a real-time sampling rate of 1GSa/s, this versatile oscilloscope is ideal for embedded systems debugging, digital circuit testing, and general-purpose R&D applications.

Equipped with deep memory up to 14 Mpts, advanced trigger capabilities, and a large 8-inch WVGA display, the MSO2102A provides detailed waveform visibility and seamless signal interpretation. Its built-in serial bus decoding, USB/LAN connectivity, and waveform recording features enhance productivity and support real-time debugging for complex applications.


Key Features:

  • 100MHz bandwidth with 1GSa/s real-time sampling

  • 2 analog input channels + 16 digital logic channels

  • Deep memory: up to 14 Mpts per channel

  • Serial bus decoding: I²C, SPI, UART, CAN, LIN

  • Large 8” WVGA color display (800x480 resolution)

  • Waveform record, playback, and real-time update

  • USB Host/Device and LAN interface for data sharing and remote access

  • Advanced triggering: Edge, Pulse Width, Slope, Video, Pattern


Applications:

  • Embedded systems debugging

  • Digital and analog circuit development

  • Automotive electronics testing (CAN/LIN)

  • Industrial control signal monitoring

  • RF and communications waveform analysis

  • Laboratory and academic research


Technical Specifications:

  • Model: Rigol MSO2102A

  • Analog Channels: 2

  • Digital Channels: 16

  • Bandwidth: 100MHz

  • Max Sampling Rate: 1GSa/s

  • Memory Depth: 14 Mpts

  • Waveform Update Rate: 50,000 wfms/s

  • Display: 8” WVGA (800x480)

  • Connectivity: USB Host/Device, LAN (LXI)

  • Decoding Protocols: I²C, SPI, UART, CAN, LIN

  • Dimensions: 361mm × 179mm × 102mm

  • Weight: ~3.5 kg
