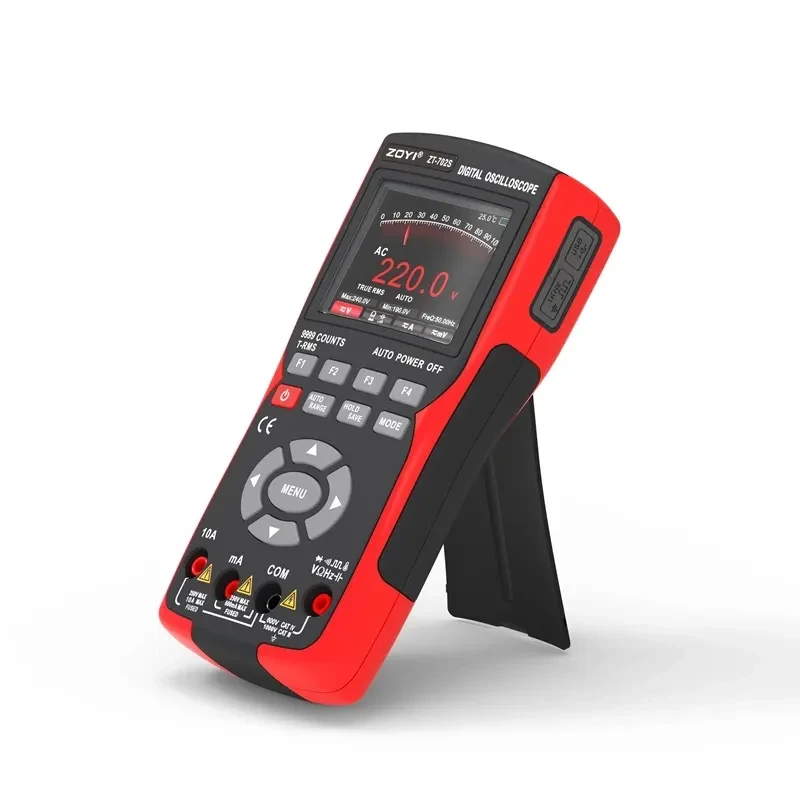

Double Injection Model, Color LED screen Safety: Independent battery storage compartment, supports charging and measuring while working Humanized: Screen brightness and the standby time can be adjusted Convenient: Portable, one-hand operation(button design) In the box: Oscilloscope Zippered carrying case One pair of DMM test probes One oscilloscope probe One temperature probe User manual Highlights: Counts 9999 Transmission bandwidth 10M Sampling method real-time sampling Channels Single channel probe input measurement sampling rate 48MS/s Storage depth 64Kpts display screen 2.8 inch IPS color screen DC Current 10A AC Current 10A DC Voltage 1000V AC Voltage 750V Resistance 100MΩ Capacitance 100mF frequency 1MHz Temperature (-20~1000)°C CE Specifications: Display：2.8 inch IPS full viewing angle color screen Ranging：Auto/Manual Material：ABS+TPE Update Rate：3 Times/Second Ture RMS：yes Data Hold：yes Backlight：yes Low Battery Indication：yes Auto Power Off：yes Dimension：177*89*40mm Weight:：345g(NO BATTERY) Battery Type：18650 Battery * 1 Oscilloscope Specifications： Bandwidth：10MHZ Sampling method：real-time sampling real-time sample rate：48MSa/s Channels：1 input coupling：AC/DC input resistance：1MΩ,@16pf Probe attenuation：X1, X10 Max input voltage：150V (DC+AC peak) Sample rate range：1.5Sa/s – 48MSa/s Waveform interpolation：(sinx)x Sweep speed range：50ns/div – 20s/div Time Base Accuracy：20ppm record length：Max 64Kbyte sensitivity：20mV/div – 10V/div Displacement range：4 cells (positive and negative) Analog Bandwidth：10MHZ low frequency response：>10HZ Rise Time：<10ns DC Gain Accuracy：±3% Multimeter Specifications： DC Voltage (V)：999.9mV/9.999V/99.99V/999.9V DC Voltage (mV):9.999mV/99.99mV AC Voltage (V):999.9mV/9.999V/99.99V/999.9V AC Voltage (mV):9.999mV/99.99mV *Frequency response of ACV: 40Hz-1kHz DC Current (A/mA):9.999A/999.9mA DC Current (μA/mA):99.99mA/9999μA AC Current (A):9.999A/999.9mA AC Current (μA/mA):99.99mA/9999μA Frequency response of AC Current: 40Hz-1kHz Resistance：99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ Capacitance: 9.999nF/ 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz Temperature:(-20~1000)°C/(-4~1832)°F Diode ：yes Continuity：yesTWO IN ONE - Oscilloscope + DMM Built-in lithium battery + Type C charging cable single channel, 2.8-inch IPS full-view color screen, 10 MHZ Bandwidth, 48MSa/s real-time sampling rate, 9999 counts, for school education, automobile maintenance, power detection, and delicate repairs.

About this item

• Includes scope, DMM test probes, oscilloscope probe, temperature probe, bag, user manual
• 9999 counts
• USB-C rechargeable battery
• Oscilloscope, voltage, current, resistance, capacitance, frequency, diode, continuity
• 10MHz bandwidth
• 390g (scope and battery)
