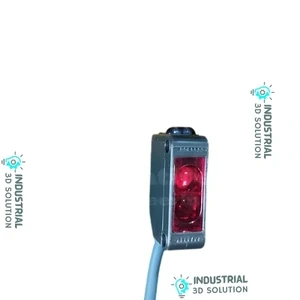

OMRON E3Z-D62 Photoelectric Sensor – High-Precision Diffuse Reflective Sensor for Industrial Automation, Object Detection & Conveyor Systems
Product Overview
The OMRON E3Z-D62 is a compact, built-in amplifier photoelectric sensor of the E3Z series, designed for diffuse reflective detection in industrial automation applications. It’s ideal for use in conveyor systems, object detection, parts presence checking, packaging lines, and general factory automation. With up to 1 meter sensing distance in diffuse mode, selectable light-ON/dark-ON modes, and robust IP67 housing, it offers dependable performance in demanding environments.
Key stress points addressed:
-
Built to resist dust and water (IP67)
-
Compatible with NPN output models (pre-wired cable)
-
Reliable at 1 ms response time, and supports both light-ON and dark-ON operation modes
Key Features
-
Diffuse Reflective Sensing (up to 1 m) — detects objects based on reflected light (no reflector needed) Built-in Amplifier — integrated electronics for simplified wiring and compact installation
-
Selectable Light-ON / Dark-ON Operation — user can choose detection logic mode depending on application
-
Rugged IP67 Housing — sealed against dust and water ingress, suitable for industrial environments Short Response Time (≤1 ms) — fast detection capability for high-speed conveyor or automation use Compact Build — small footprint: approx. 10.8 × 20 × 31 mm
-
Robust Electrical Protections — reverse polarity, short-circuit protection, mutual interference prevention Temperature & Ambient Light Tolerance — operates between –25 °C and +55 °C; tolerates up to 10,000 lx ambient light
-
Pre-wired 2 m Cable (standard) or optional connector models available
Technical Specifications
| Parameter | Value / Detail |
|---|---|
| Model | OMRON E3Z-D62 (Diffuse Reflective Type) |
| Sensing Method | Diffuse Reflective (no external reflector) |
| Sensing Distance | 1 meter (typical) in diffuse mode |
| Output Type | NPN open collector (pre-wired), 100 mA max |
| Supply Voltage | 12 to 24 V DC ±10% |
| Response Time | ≤1 ms (operate / reset) |
| Housing & Lens Material | Case: PBT (polybutylene terephthalate); Lens: modified polyarylate / methacrylate |
| Ambient Temp. Range | –25 °C to +55 °C (some models –40 to +55 °C) |
| Ambient Illumination Tolerance | Up to 3,000 lx incandescent; up to 10,000 lx sunlight |
| Degree of Protection | IP67 (dust tight, water immersed conditions) |
| Insulation / Dielectric | Insulation resistance ≥ 20 MΩ at 500 VDC; dielectric strength 1,000 VAC for 1 min |
| Mechanical / Shock / Vibration | Vibration: 10–55 Hz, 1.5 mm amplitude; shock: 500 m/s², 3 times each axis |
| Connection | Pre-wired cable (2 m) or optional M8 connector style |
| Weight | Approx. 65 g (pre-wired) |
Applications & Use Cases
-
Conveyor Systems — detect passing parts or gaps on belts
-
Object Presence / Absence Detection — packaging, assembly, robotics
-
Quality Control / Counting — verify product count or detect missing parts
-
Machine Safety / Guarding — monitor gates or access points
-
Automation Lines — integrate with PLC systems for process control
-
Industrial Equipment — detect position or travel limits of movable parts
Benefits & Competitive Advantages
-
No Reflector Needed — simplifies system design and maintenance
-
Compact & Versatile — fits tight spaces, rigid or connector options
-
Fast & Reliable Response — 1 ms switching ensures accurate detection in high-speed lines
-
High Environmental Resistance — IP67 sealing, light tolerance, and temperature resilience
-
Low Power & Safe Operation — reverse polarity, overload protections reduce error/damage
-
Stable Performance under Ambient Conditions — engineered to mitigate interference (light, noise)
-
Brand Trust & Support — OMRON’s long track record and support infrastructure
| Parameter | Value / Detail |
|---|---|
| Model | OMRON E3Z-D62 (Diffuse Reflective Type) |
| Sensing Method | Diffuse Reflective (no external reflector) |
| Sensing Distance | 1 meter (typical) in diffuse mode |
| Output Type | NPN open collector (pre-wired), 100 mA max |
| Supply Voltage | 12 to 24 V DC ±10% |
| Response Time | ≤1 ms (operate / reset) |
| Housing & Lens Material | Case: PBT (polybutylene terephthalate); Lens: modified polyarylate / methacrylate |
| Ambient Temp. Range | –25 °C to +55 °C (some models –40 to +55 °C) |
| Ambient Illumination Tolerance | Up to 3,000 lx incandescent; up to 10,000 lx sunlight |
| Degree of Protection | IP67 (dust tight, water immersed conditions) |
| Insulation / Dielectric | Insulation resistance ≥ 20 MΩ at 500 VDC; dielectric strength 1,000 VAC for 1 min |
| Mechanical / Shock / Vibration | Vibration: 10–55 Hz, 1.5 mm amplitude; shock: 500 m/s², 3 times each axis |
| Connection | Pre-wired cable (2 m) or optional M8 connector style |
| Weight | Approx. 65 g (pre-wired) |
