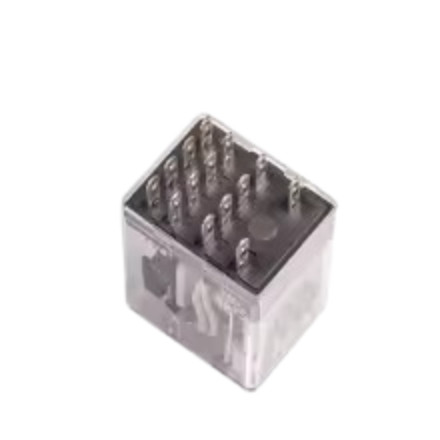

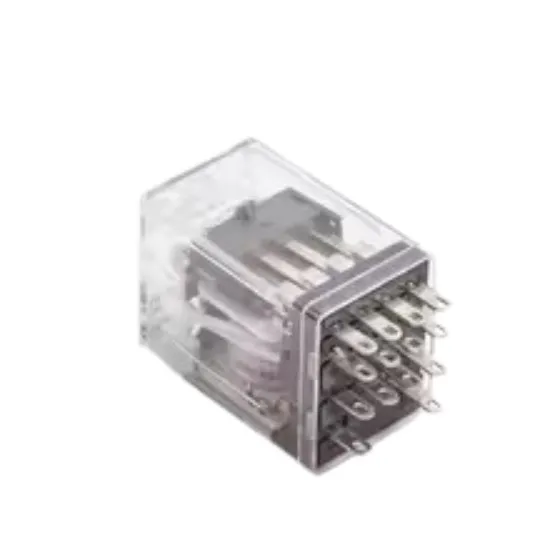

? JZX-22F Miniature Power Relay – Compact High Performance

The JZX-22F Miniature Power Relay is a compact, high-efficiency electromagnetic relay designed to deliver reliable switching performance in a wide variety of electrical and electronic systems. Engineered for precision and durability, this relay is an essential component in automation control panels, home appliances, industrial machines, and power distribution circuits.

With a small form factor and high current handling capacity, the JZX-22F is perfect for use in tight spaces without compromising performance. It is capable of switching AC or DC loads efficiently, making it suitable for a broad range of low to medium voltage applications.

This relay supports PCB mounting, allowing for easy integration into custom circuit boards. It’s available in several coil voltage options including 5V, 12V, and 24V DC, offering flexibility to match different circuit requirements. The JZX-22F is built with high-quality contacts, ensuring long mechanical life and consistent performance even under frequent switching.

✅ Key Features:

• Model: JZX-22F

• Type: Miniature Electromagnetic Power Relay

• Coil Voltage Options: 5V, 12V, 24V DC

• Contact Configuration: SPDT / DPDT

• Contact Rating: Up to 10A at 250VAC / 30VDC

• Mounting Type: PCB mount for easy installation

• Durability: High mechanical and electrical life

• Operating Temperature: -40°C to +85°C

• Insulation Resistance: ≥100MΩ (500VDC)

• Dielectric Strength: 1500VAC between coil & contacts

? Applications:

• Industrial automation and control systems

• Home appliances and electronic devices

• Switching power supplies and power distribution units

• Signal transmission and circuit isolation

• DIY electronics and embedded systems

• HVAC systems and timer controls

? Why Choose JZX-22F Miniature Power Relay?

• Compact and space-saving design for modern electronic setups

• High switching capacity with minimal coil consumption

• Reliable and long-lasting operation in demanding environments

• Cost-effective solution for OEMs, engineers, and hobbyists

• Available in Bangladesh for fast local delivery
