The tester is developed with Japan SOKEN cooperation, expanded freely adjust the width of the test specimen

Electromagnetic steel (silicon steel sheet), orientation and non-oriented, cold-rolled and hot-rolled steel sheet and ordinary iron plate can be used.

Features

Non-destructive measurement without the need for specialized production test product directly read the value of iron loss;
Arbitrarily setting the width and thickness of the test product, suitable for monolithic testing of a variety of shapes;
The touch of a button, easy to operate;
With a regulatory function, using standard plate, can be regularly calibrated accuracy of the instrument;
The miniature printer can print a test data;
Strong anti power outside interference;
The vacant test or invalid test automatically disconnect protection;
Light weight - small size - easy to carry. Serial RS-232C output print function

Function

Test range: 0.10 to 19.99 W / kg;
Magnetic flux density: according to international test standard 1.5T (non-oriented Non Oriented); switch 1.7T (orientation Oriented Grain) two tranches;

Specimen thickness: 0.10 ~ 0.99mm;

Sample length: 20mm;

Sample width: minimum 2mm (5mm ensure the accuracy of the design, complex stamping sheet irregularly shaped (non-rectangular), similar to the effective width) can be set arbitrarily;
Test accuracy: ≤ ± 5% (JIS the circle method comparing the Epstein side);
Test frequency: 50Hz;

Power: AC110/220V (50Hz).

Environmental conditions: (1)The accuracy range of 15 ~ 35 °C

                                     (2) Operating temperature range of 0 ~ 40 °C
                                     (3) Humidity range 35% to 85% (no dew)
Size weight

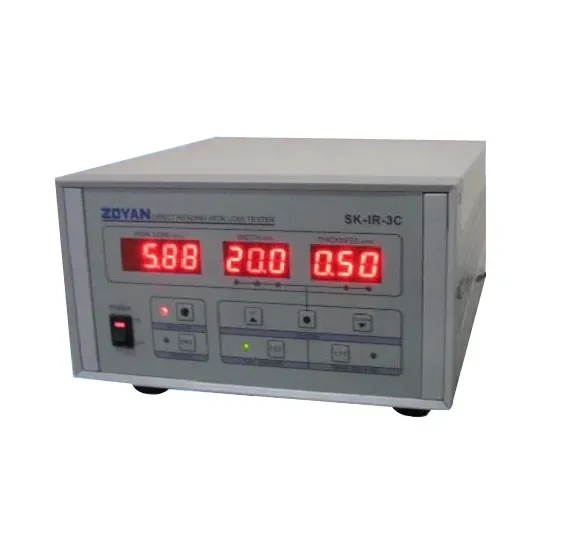

· Host (SK-IR-3C) dimensions: W (240) × H (130) × D (350) (mm)
· Weight: host about 4 Kg
