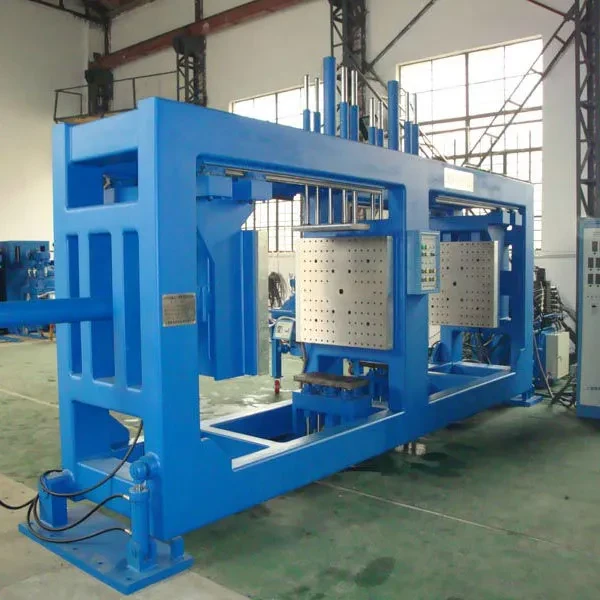

Hydraulic APG machine:
1. The machine frame parts: 1 set
The overall framework structure, left and right double production devices ;
45# linear guide rail support and guidance movable template;
Two hanging mobile plate;
Two interface ports to connect with two heating plates (including the mechanical interface, electrical interface);
Clamping pressure can bear 200KN;
Clamping cylinder: the piston diameter 125 mm, stroke 1180 mm; - Maximum distance between the two heating plate Max. 1180 mm Min. 130mm;
2. Heating plate: 4 Pcs
800 × 800 mm plate
Heat Insulation asbestos sheet and pad
220VAC Heater
K-type thermocouple
The appropriate accessories: rectangular plugs, screws, etc.

3, Hydraulic system: 1 set
Grading variable piston pump 2 nos and three corresponding asynchronous motors
7 groups of hydraulic valves for the corresponding action of each oil pipeline
Valve block, filter and other appropriate accessories.


4, Electrical control system:
Relatively independent 16 circuit lines of the heating system are for two working devices
An emergency stop switch
The heating voltage 220 VAC / 50 Hz
Control voltage 24DAC
