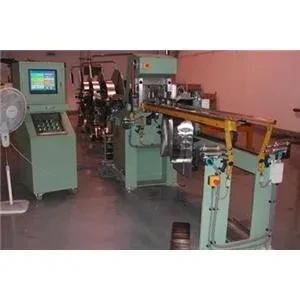

Amorphous Core Cutting Machine
Official Store
Quote Required
Institutional / Custom Order
Price is customized based on project specifications, quantity, and requirements. Click below for an official quotation.
Instant RFQ Submission
Official VAT / Commercial Invoice
Fast Response within 2-4 Hours
100% Authentic
Genuine Brand Guarantee
Cash on Delivery
Pay When You Receive
7-Day Warranty
Hassle-Free Replacement
1
TIG Welding Tungsten Electrode 2.4mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#2
TIG Welding Tungsten Electrode 1.6mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#3
Solder Crystal Rosin Flux BK-220 by BAKU – Clean Soldering, Smooth Connections
#4
Bambu Lab PLA Matte Ivory White Filament 1.75mm – Premium 3D Printing Material for Smooth, Precise Prints
#5
Beelayers Pla+ Black 3D Printer Filament 1.75mm
#6
Beelayers PLA+ White 3D Printer Filament 1.75mm – High Strength PLA Plus Filament for FDM 3D Printing
Overview
The amorphous alloy core shearing line, mainly for the amorphous alloy core automatic cutting and automatic stacking. Also apply to the similar processing requirements.
Cutting line uses large-capacity PLC control, servo execution system, color touch-screen human-machine interface and high-precision mechanical drive mechanism to ensure the machine's high automation, high productivity, high reliability.
Technical Specification
Core window height : 150 ---- 850mm
Core window width: 30 ----- 450mm
Core stacking thickness:25 ----- 130mm
Cutting width:140 --- 220mm
Groups per set fixed type: 4-7 groups
distributed type; 2-10 group
Material collecting platform length L = 2000mm
Maximum shearing length max: 3000mm
Precision
Stacking position error ± 0.5mm
Cutting length accuracy ± 0.5mm
Cutting width max: 250mm
Cutting length 300mm-3000mm
Cutting thickness: max. thickness 15 layers, each layer: 0.025mm
Shearing angle :90 degree
Accuracy of cutting angle: ± 0.05 degree
Productivity
Feeding speed 5---80M/min
Shearing speed 0 --- 30 times / min
Note; cut 1000mm length strip material, the time to complete a cutting cycle is less than 3 seconds.
Power
Electric power 10 KW
Power source three-phase five-wire 380V 50Hz power supply
Air Source Air consumption 0.3M ³ / min
Gas pipe PVC tube (or nylon tube) diameter φ8
The whole area of the location; 12M × 2M × 2.2M
Technical Specifications
Official specifications for Amorphous Core Cutting Machine.
| Specification | Details |
|---|---|
| Product Name | Amorphous Core Cutting Machine |
| Category | Production Equipment's |
| Unit | pcs |
| Power Compatibility | 220V AC, 50Hz (Standard Bangladesh Grid Compatible) |
| Warranty & Service | Official Warranty & Technical Support at Industrial 3D Solution, Dhaka |
| Delivery Coverage | Fast Delivery inside Dhaka & Nationwide Courier to all 64 Districts |
