6010FAT Full Automatic Tube Fiber Laser Cutting Machine 6000mm Pipe and Tube CNC Cutting System 1500W–6000W High Speed Industrial Laser Cutter

6010FAT Full Automatic Tube Fiber Laser Cutting Machine 6000mm Pipe and Tube CNC Cutting System 1500W–6000W High Speed Industrial Laser Cutter

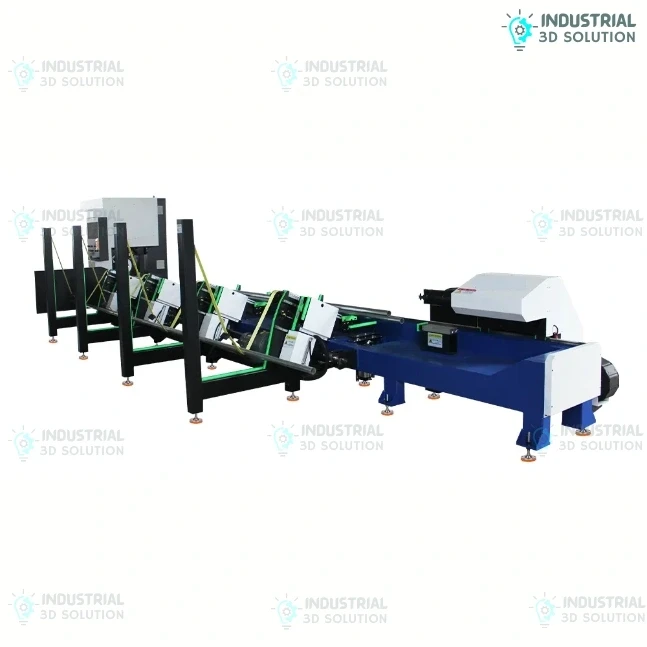

Product Description
The 6010FAT Full Automatic Tube Fiber Laser Cutting Machine is a high-performance CNC solution designed for precision cutting of metal pipes and tubular structures in industrial manufacturing. Engineered for efficiency, it supports automatic feeding, loading, and unloading, significantly reducing manual labor and improving production speed. With a working range of 6000mm and tube diameters from φ16–110mm, this machine is ideal for round and square tubes, as well as complex profiles such as I-beams and channel steel. Using advanced fiber laser technology with power options from 1500W to 6000W, it delivers high-speed, accurate, and stable cutting performance. This system is widely used in metal fabrication, construction, automotive, and structural steel industries in Bangladesh where productivity and precision are critical.

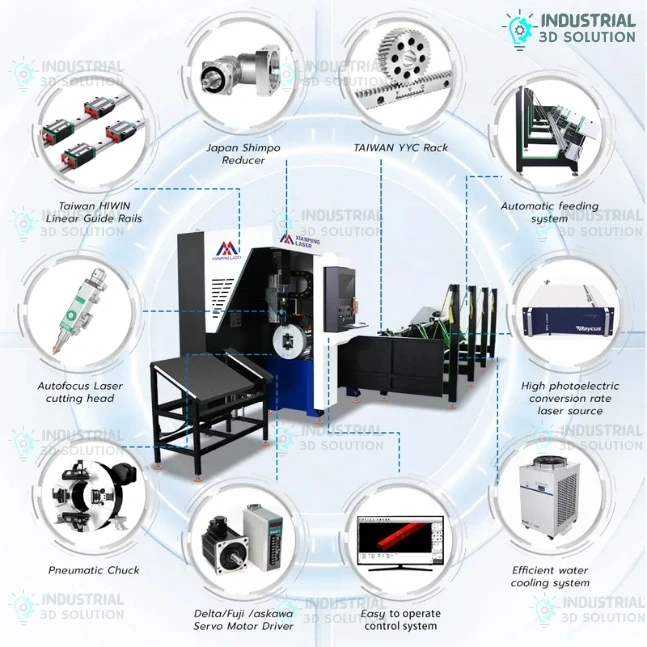

Key Features

• Full automatic tube fiber laser cutting machine with intelligent feeding and unloading system
• High precision CNC tube cutting machine with ±0.03mm positioning accuracy
• Supports round and square tubes from φ16–110mm for versatile industrial use
• Automatic pneumatic chuck system ensures stable and accurate pipe clamping
• TubePro control system enables advanced CNC programming and efficient operation
• High-speed fiber laser cutting system with up to 150m/min cutting speed
• Compatible with Raycus, IPG, and MAX laser sources for flexible configuration
• Specialized tube cutting head designed for sharp corner and profile accuracy
• Fully automated workflow reduces labor cost and increases production efficiency

Technical Specifications

• Material / Model / Type: XM-6010FAT / Full Automatic Tube Fiber Laser Cutting Machine
• Working Area: 6000mm pipe length, φ16–110mm tube diameter
• Laser Power: 1500W / 2000W / 3000W / 4000W / 6000W
• Cutting Materials: Round tube, square tube, and structural profiles
• Laser Source: MAX / Raycus / IPG
• Cutting Head: Raytools / OSPRI / Au3tech / WSX / Precitec
• Control System: TubePro CNC system
• Positioning Accuracy: ±0.03mm
• Maximum Speed: 150m/min
• Maximum Acceleration: 1.5G
• Cooling System: Water cooling with protection system
• Power Supply: 380V 3 Phase, 50/60Hz (typical industrial setup)
• Net Weight: Approx. 4500–6000 kg (depending on configuration)
• Package Weight: Approx. 5000–6500 kg
• Package Dimensions (Length × Width × Height): 850 × 200 × 230 cm (approx.)
• Color / Finish: Industrial heavy-duty steel frame, customizable coating
• Country of Origin: China

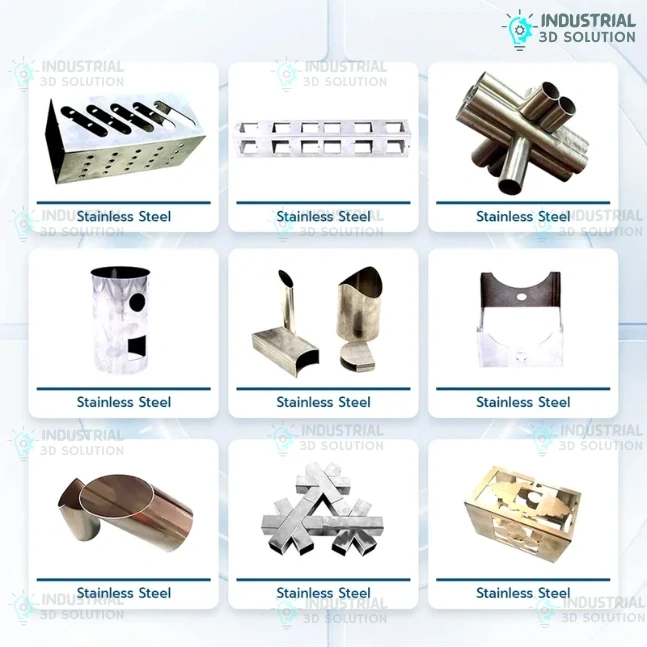

Applications / Use Cases

• Structural steel pipe fabrication and construction industry
• Automotive exhaust and chassis tube manufacturing
• Furniture metal tube cutting and fabrication
• Agricultural machinery frame production
• Industrial equipment and pipeline manufacturing
• Engineering workshops and heavy metal fabrication units
• Signage and metal frame structures
• Custom tubular product design and prototyping

Packaging Information

• 1 × Full Automatic Tube Fiber Laser Cutting Machine
• Protective film wrapping for entire machine body
• Heavy-duty anti-collision protection materials
• Fumigation-free plywood wooden crates with steel reinforcement
• Secure pallet base with iron binding straps
• Includes TubePro control system, accessories, and operation manuals

Why Choose This Product

• Fully automated tube feeding and cutting system reduces labor dependency
• High precision tube cutting with industrial-grade accuracy
• Supports multiple tube shapes and diameters for versatile production
• Compatible with global laser sources and cutting heads
• High-speed performance improves overall production efficiency
• Strong availability and technical support for Bangladesh industrial market
