3/2 OR 5/2 Double pneumatic control valve
Official Store
৳660.02
৳720.00
-8% OFF
/pcs
Inclusive of all taxes
Best Price Guarantee
Delivery in 4 Days
100% Authentic
Genuine Brand Guarantee
Cash on Delivery
Pay When You Receive
7-Day Warranty
Hassle-Free Replacement
1
TIG Welding Tungsten Electrode 2.4mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#2
TIG Welding Tungsten Electrode 1.6mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#3
Solder Crystal Rosin Flux BK-220 by BAKU – Clean Soldering, Smooth Connections
#4
Bambu Lab PLA Matte Ivory White Filament 1.75mm – Premium 3D Printing Material for Smooth, Precise Prints
#5
Beelayers Pla+ Black 3D Printer Filament 1.75mm
#6
Beelayers PLA+ White 3D Printer Filament 1.75mm – High Strength PLA Plus Filament for FDM 3D Printing
Product Description

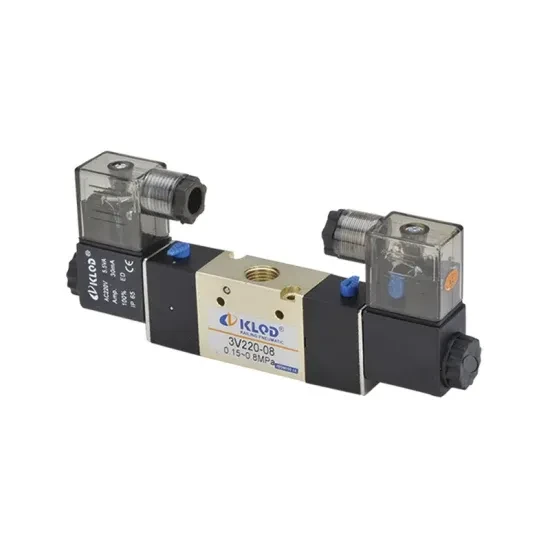

4V200 Series 3/2 Way 3V220-08 Double Electric Control Solenoid Valve
1.Working medium:40 Micron Filtered Air
2.Working pressure:0.15~0.8MPa
3.Ambient Temperature:5~50ºC
4.Insulation&Protection Class:F Class. IP65
5.Highest Action Frequency:5 Cycle /Sec
6.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life.
7.Several standard voltage grades are optional.
Working Voltage:DC12V DC24V AC110V AC220V
| 4V | 2 | 10 | 08 | B | W | AC220V |
| Specification Code 4V:5/2(3) Way Solenoid Valve 4A:5/2(3) Way Pneumatic Control Valve 3V:3/2 Way Solenoid Valve 3A:3/2 Way Pneumatic Control Valve | Series Code 200 Series | 10:Single-head Double position 20:Double-head Double-position 30C:Double-head Three-position Close Type 30E:Double-head Three-position Exhaust Type 30P:Double-head Three-position Pressure Type | Port Size 06:1/8'' 08:1/4'' | Joint Pipe Form and Initial State Blank:Pipe Connection Type B:5/2 Way Plate Connection Type 5/3 Way Plate Connection Type NC:3/2 Way Normal Close Type NO:3/2 Way Normal Open Type | Wiring Form Blank: Standard Connector LD:Brown with Lighting Connector LD1:White with Lighting Connector W:Lead Wire Type | Standard Voltage DC12V DC24V AC24V 50Hz/60Hz AC110V 50Hz/60Hz AC220V 50Hz/60Hz AC380V 50Hz/60Hz |
1.Working medium:40 Micron Filtered Air
2.Working pressure:0.15~0.8MPa
3.Ambient Temperature:5~50ºC
4.Insulation&Protection Class:F Class. IP65
5.Highest Action Frequency:5 Cycle /Sec
6.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life.
7.Several standard voltage grades are optional.
Working Voltage:DC12V DC24V AC110V AC220V
| 4V | 2 | 10 | 08 | B | W | AC220V |
| Specification Code 4V:5/2(3) Way Solenoid Valve 4A:5/2(3) Way Pneumatic Control Valve 3V:3/2 Way Solenoid Valve 3A:3/2 Way Pneumatic Control Valve | Series Code 200 Series | 10:Single-head Double position 20:Double-head Double-position 30C:Double-head Three-position Close Type 30E:Double-head Three-position Exhaust Type 30P:Double-head Three-position Pressure Type | Port Size 06:1/8'' 08:1/4'' | Joint Pipe Form and Initial State Blank:Pipe Connection Type B:5/2 Way Plate Connection Type 5/3 Way Plate Connection Type NC:3/2 Way Normal Close Type NO:3/2 Way Normal Open Type | Wiring Form Blank: Standard Connector LD:Brown with Lighting Connector LD1:White with Lighting Connector W:Lead Wire Type | Standard Voltage DC12V DC24V AC24V 50Hz/60Hz AC110V 50Hz/60Hz AC220V 50Hz/60Hz AC380V 50Hz/60Hz |
