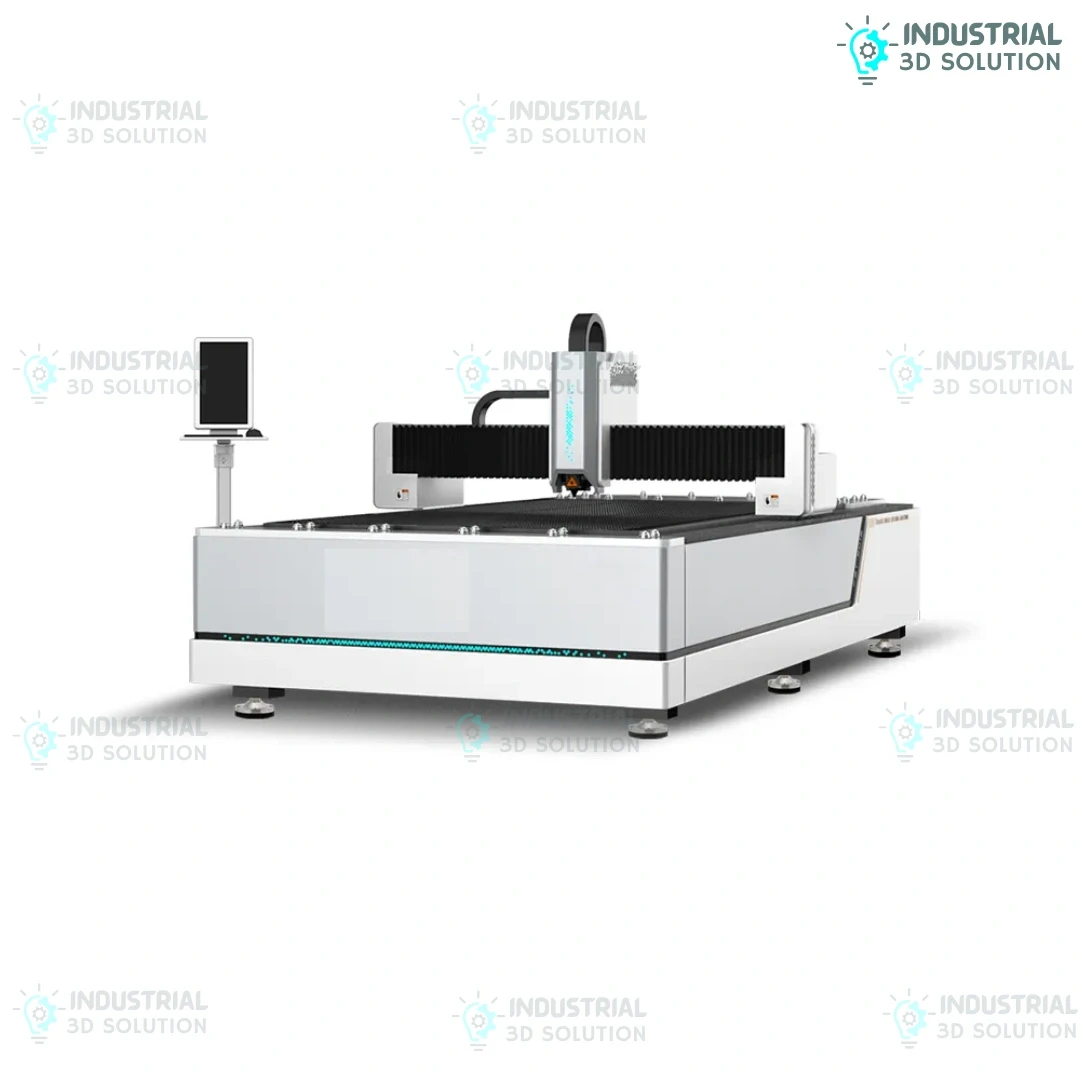

3015 Economical Fiber Laser Cutting Machine XM-New Industrial Metal Cutter 3000x1500mm Working Area CNC Fiber Laser Cutting System Raytools XC3000S BM110 Head BWT RECI Raycus MAX Source

Product Description
The 3015 Economical Fiber Laser Cutting Machine XM-New is a high-performance CNC metal cutting solution designed for precision fabrication and industrial efficiency. Built with a 3000×1500mm working area, this fiber laser cutting machine is ideal for sheet metal processing, signage production, and light-to-medium industrial applications. Equipped with a Raytools XC3000S control system and BM110 laser head, it ensures stable operation, accurate cutting, and smooth performance across various metals including stainless steel, carbon steel, and aluminum.

This machine is well-suited for workshops, engineering firms, and fabrication businesses in Bangladesh looking for reliable laser cutting technology at a competitive cost. With servo motor precision, high acceleration, and multiple fiber source options such as Raycus, MAX, and BWT, it delivers consistent results while reducing operational downtime and maintenance complexity.

Key Features

• Large 3000×1500mm working area fiber laser cutting machine for sheet metal processing
• Raytools XC3000S control system ensures precise CNC laser cutting performance
• BM110 fiber laser head provides stable and high-accuracy cutting results
• Compatible with Raycus, MAX, BWT, and RECI fiber laser sources
• HCFA servo motor system delivers smooth motion and reliable positioning accuracy
• HIWIN guide rails and YYC rack enhance durability and long-term performance
• Japan SMC air proportional valve for efficient gas control in laser cutting
• High acceleration up to 1G improves cutting speed and productivity
• Industrial-grade electrical components from DELIXI ensure stable power control
• HanLi chiller system maintains optimal laser temperature for continuous operation

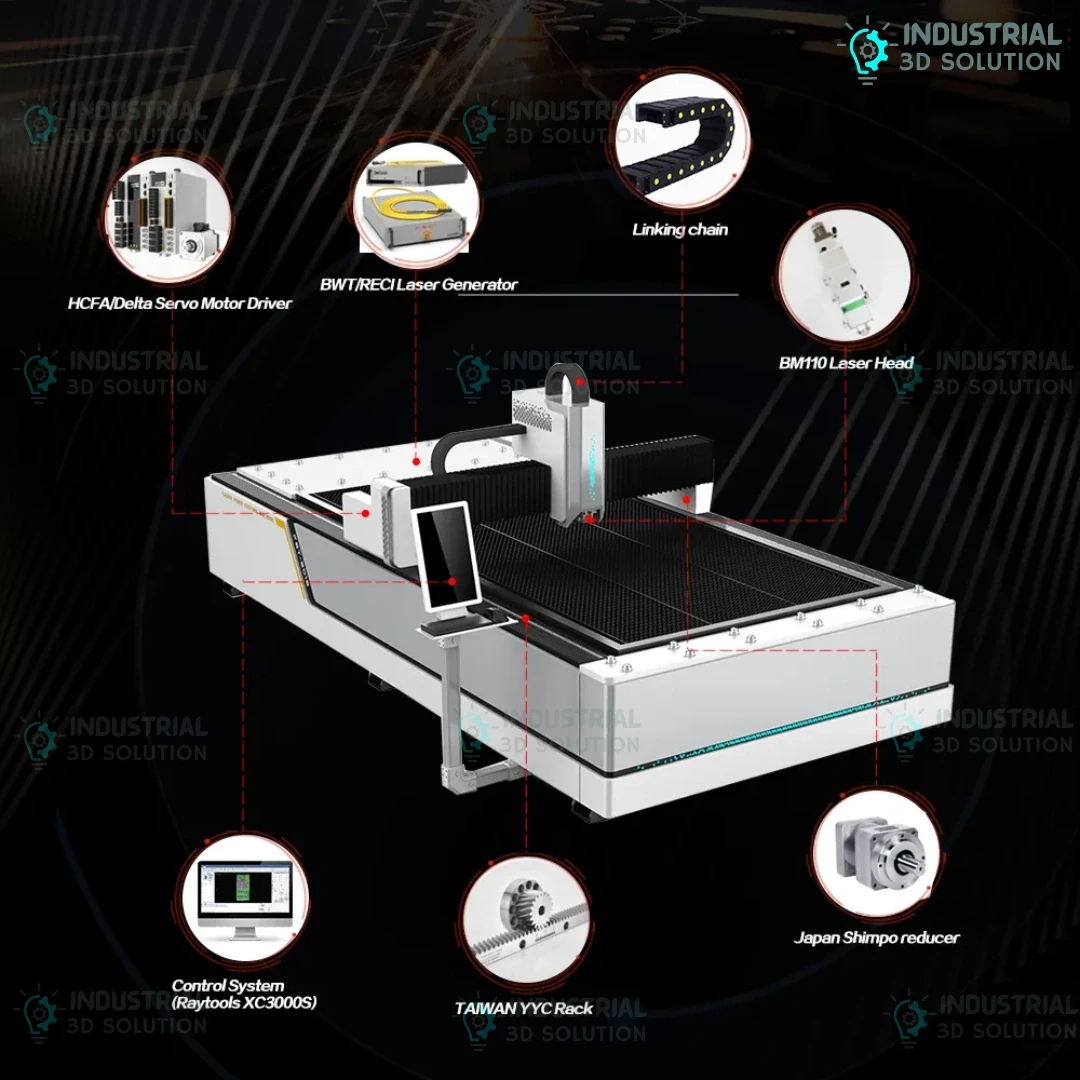

Technical Specifications
Material / Type: CNC Fiber Laser Cutting Machine
Model: XM-Economic Type (XM-New Design)
Working Area: 3000 × 1500 mm
Control System: Raytools XC3000S
Laser Head: BM110 Fiber Laser Head
Fiber Source Options: BWT / RECI / Raycus / MAX
Drives & Motors: HCFA Servo Motor System
Driver Power: X=0.75/1.3KW, Y=0.75/1.3KW, Z=400W
Guide Rails: HIWIN Rails
Rack & Gear: YYC Rack
Reducer: Japan SHIMPO
Air Valve: Japan SMC
Electrical Components: DELIXI ELECTRIC
Chiller: HanLi Industrial Chiller
Laser Wavelength: 1080 nm
Maximum Acceleration: 1G
Machine Size: 450 × 217 × 177.5 cm
Voltage: 220V Single Phase / 380V Three Phase, 50/60Hz
Net Weight: Approx. 3500–4000 kg
Package Weight: Approx. 3800–4300 kg
Package Dimensions (Length × Width × Height in cm): 470 × 230 × 190 cm
Color / Finish: Industrial Grey / Powder-Coated Steel Body
Country of Origin: China

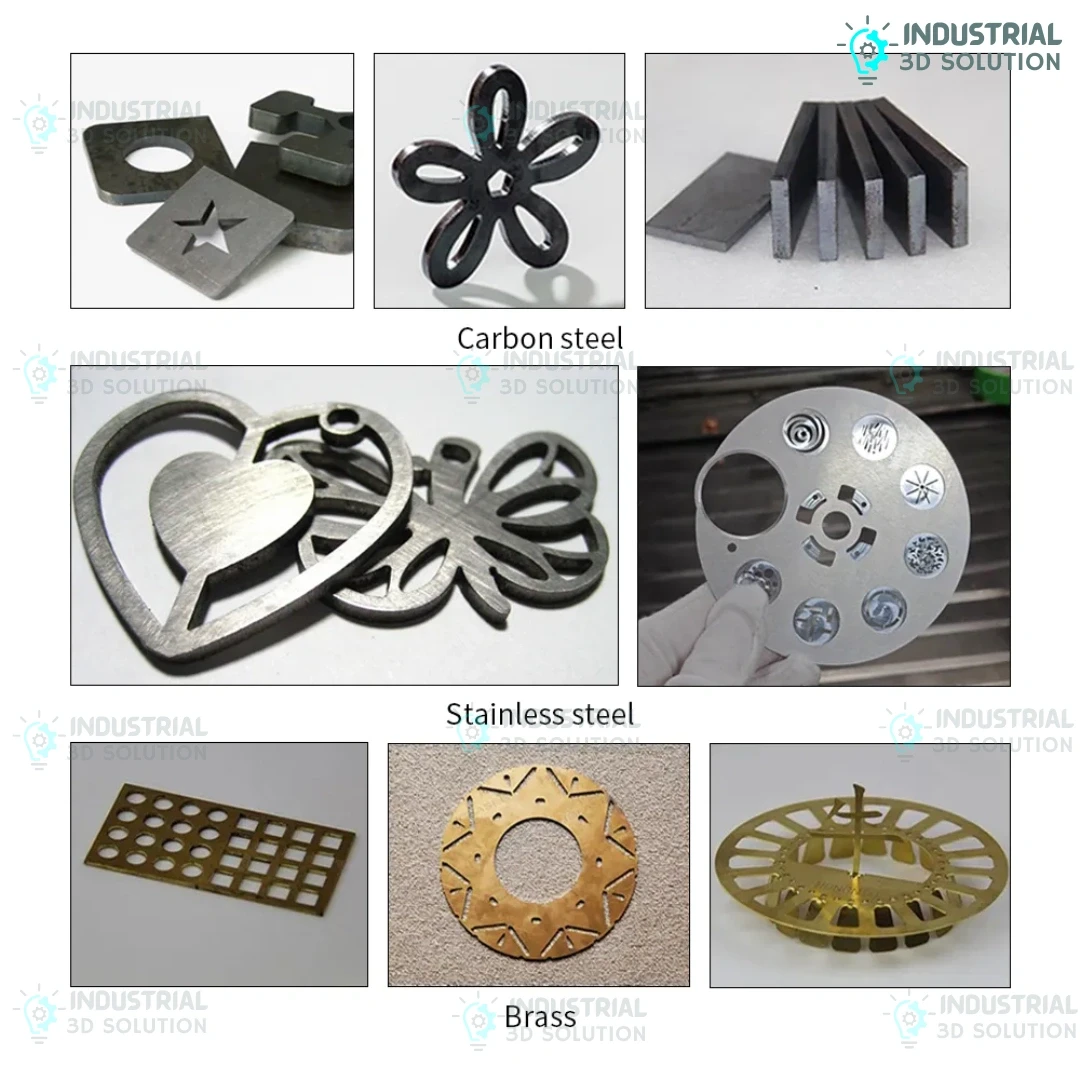

Applications / Use Cases

• Sheet metal fabrication workshops and CNC job shops
• Stainless steel and carbon steel cutting for industrial production
• Signage and advertising board manufacturing
• Electrical enclosure and panel fabrication
• Automotive parts and metal component cutting
• Agricultural machinery and spare parts production
• Engineering labs and technical training institutes in Bangladesh
• Custom metal design and fabrication businesses

Packaging Information

• Main fiber laser cutting machine (complete unit)
• Laser source (Raycus/MAX/BWT/RECI as selected)
• BM110 laser head and control system
• Industrial chiller (HanLi)
• Servo motor system and control cabinet
• Complete accessories and installation toolkit
• User manual and operation tutorials
• Secure packaging with full film wrapping, anti-collision edge protection
• Fumigation-free plywood wooden box with reinforced pallet and iron binding

Why Choose This Product

• Cost-effective fiber laser cutting machine for industrial and SME use
• Reliable branded components ensure long service life and minimal downtime
• Compatible with multiple laser sources for flexible configuration
• Strong technical support with complete operation training provided
• Suitable for Bangladesh market with stable voltage compatibility
• High precision and consistent output for professional fabrication
