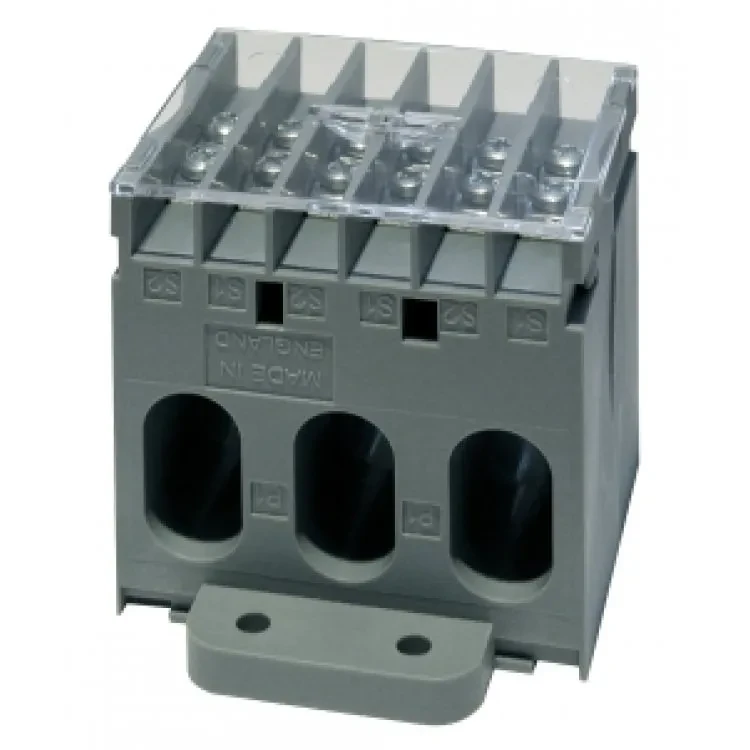

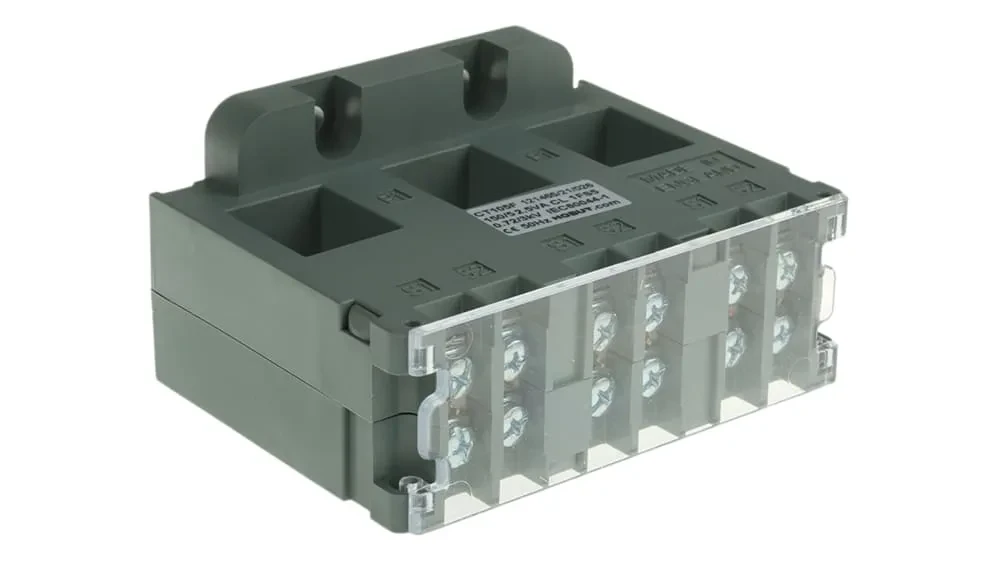

100/5A, 1.5VA, Class 1, 3-Phase CT - Hobut
Official Store
৳2,260.00
৳2,380.00
-5% OFF
/pcs
Inclusive of all taxes
Best Price Guarantee
Delivery in 4 Days
100% Authentic
Genuine Brand Guarantee
Cash on Delivery
Pay When You Receive
7-Day Warranty
Hassle-Free Replacement
1
TIG Welding Tungsten Electrode 2.4mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#2
TIG Welding Tungsten Electrode 1.6mm – Premium High-Performance TIG Rods for Stainless Steel & Mild Steel Welding
#3
Solder Crystal Rosin Flux BK-220 by BAKU – Clean Soldering, Smooth Connections
#4
Bambu Lab PLA Matte Ivory White Filament 1.75mm – Premium 3D Printing Material for Smooth, Precise Prints
#5
Beelayers Pla+ Black 3D Printer Filament 1.75mm
#6
Beelayers PLA+ White 3D Printer Filament 1.75mm – High Strength PLA Plus Filament for FDM 3D Printing
The products have an overall width of 75mm allowing installation of 75mm allowing installation directly on top of moulded case circuit breakers. They can also be used independantly in 3 phase applications.
- Conforms to IEC185, BS 7626, BSEN 60044-1, IEC 60044-1 and IEC 61869-2.
- Rated system voltage 0.72/3kV.
- Ambient temperature range -5°C to +50°C.
- Frequency range 50-60Hz.
- Insulation level 3kV for 1 minute.
- Continuous current 1.2 x rated current.
Technical Spec | Current Transformer |
| Product Model | CT75F |
| Product type | 3 - Phase CT |
| Rated System Voltage | 0.72/3kV |
| Ambient temperature range | -30 ⁰C to 80 ⁰C |
| Continuous current | 1.2 x rated current |
| Terminal Covers | Sealable terminal covers |
| Standard | IEC60044-1, BS7626, |
| Accuracy Class | Class 1 |
| Overall dimension ( H x W x D ) | 80 mm x 75 mm x 60 mm |
| Clearance dimension for Busbar ( H x W ) | 16 mm x 15 mm |
| Country of origin | United Kingdom |
Technical Spec | Current Transformer |
| Product Model | CT75F |
| Product type | 3 - Phase CT |
| Rated System Voltage | 0.72/3kV |
| Ambient temperature range | -30 ⁰C to 80 ⁰C |
| Continuous current | 1.2 x rated current |
| Terminal Covers | Sealable terminal covers |
| Standard | IEC60044-1, BS7626, |
| Accuracy Class | Class 1 |
| Overall dimension ( H x W x D ) | 80 mm x 75 mm x 60 mm |
| Clearance dimension for Busbar ( H x W ) | 16 mm x 15 mm |
| Country of origin | United Kingdom |
